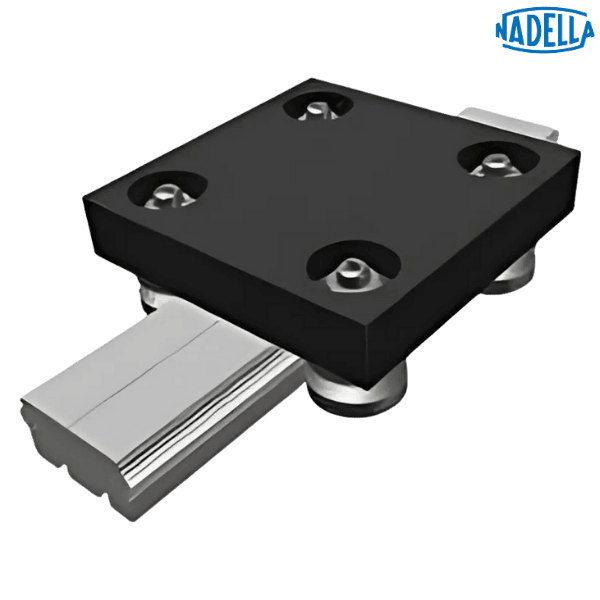

T4 FR 32 180 NADELLA

Brand - NADELLA
Item Number - T4 FR 32 180 NADELLA
Category - Carriages with Anodised Aluminium Body with Four Guide Rollers

Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 180 mm
Dimension (B) - 120 mm
Dimension (Ix) - 138 mm
Dimension (Iy) - 78 mm
Dimension (H) - 58.6 mm
Dimension (H1) - 41.6 mm
Dimension (H2) - 29 mm
Dimension (G) - M8
Dimension (b) - 15 mm
Weight - 2.1 kg
Suggested Combinations - FWS 32

♦ ♦ Images are for representation purposes only
