Description
Brand - TIMKEN
Item Number - T350 TIMKEN
Category - Tapered Roller Thrust Bearing (TTCS Type)

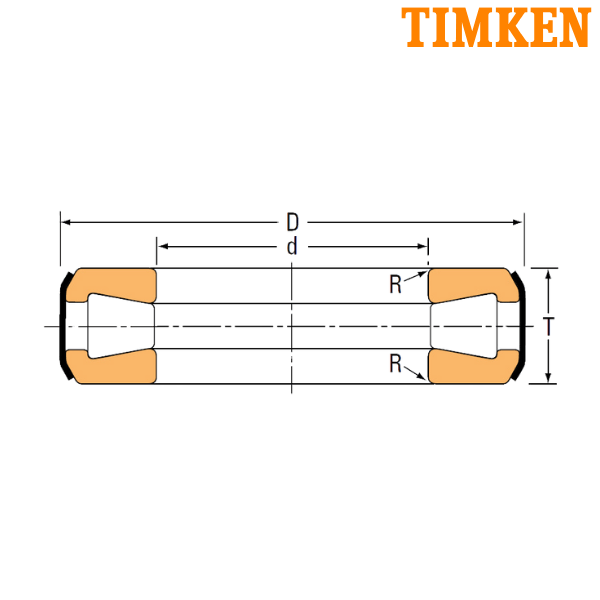

Bore Diameter (d) mm - 88.900
Bore Diameter (d) inch - 3.5000
Outer Diameter (D) mm - 133.350
Outer Diameter (D) inch - 5.2500
Width (T) mm - 33.335
Width (T) inch - 1.3124
Maximum Shaft Fillet Radius (R) mm - 2.8
Maximum Shaft Fillet Radius (R) inch - 0.11
Steering Pivot Rating (N) - 115500
Steering Pivot Rating (lbf) - 26000
Weight (kg) - 1.41
Weight (lbs) - 3.11
Oil Holes In Retainer - NO

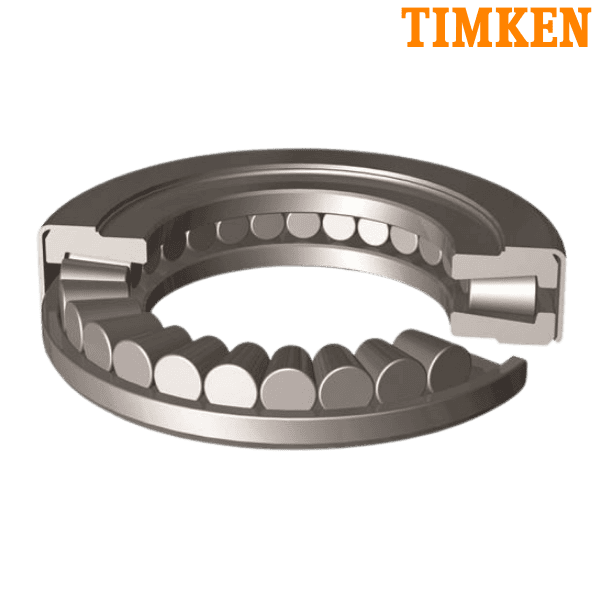

** Images are for representation purposes only
