Description
Brand - TIMKEN
Item Number - T311 TIMKEN
Category - Tapered Roller Thrust Bearing (TTHD Type)
Cage Type - Machined

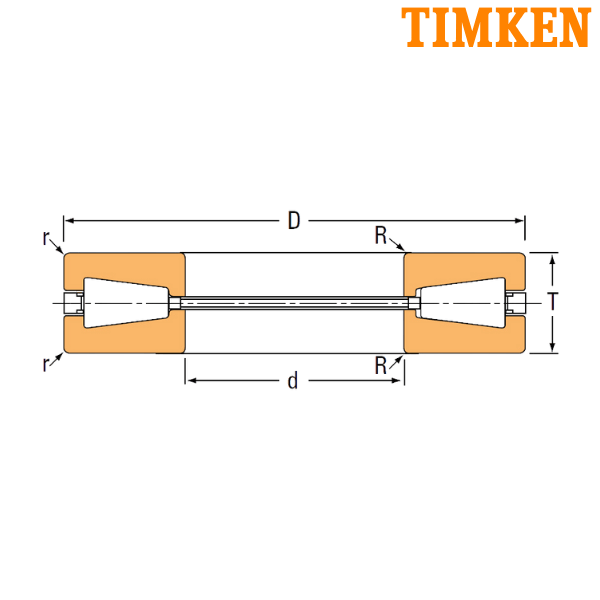

Bore Diameter (d) mm - 76.200
Bore Diameter (d) inch - 3.0000
Outer Diameter (D) mm - 161.925
Outer Diameter (D) inch - 6.3750
Width (T) mm - 33.338
Width (T) inch - 1.3215
Maximum Shaft Fillet Radius (R) mm - 3.3
Maximum Shaft Fillet Radius (R) inch - 0.13
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Static Load Rating (C0) N - 1760000
Static Load Rating (C0) lbf - 395000
Dynamic Load Rating (Ca90) N - 152000
Dynamic Load Rating (Ca90) lbf - 34200
Weight (kg) - 3.47
Weight (lbs) - 7.66
TTHD - Heavy Duty Tapered Roller Thrust Bearing

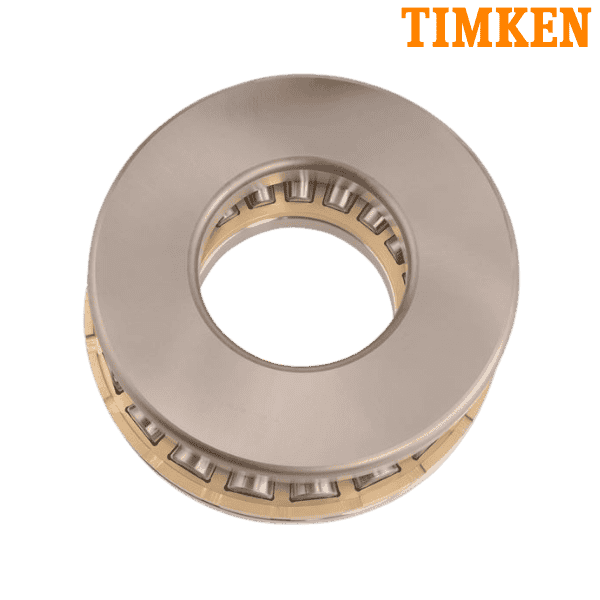

** Images are for representation purposes only
