Description
Brand - TIMKEN
Item Number - T301 TIMKEN

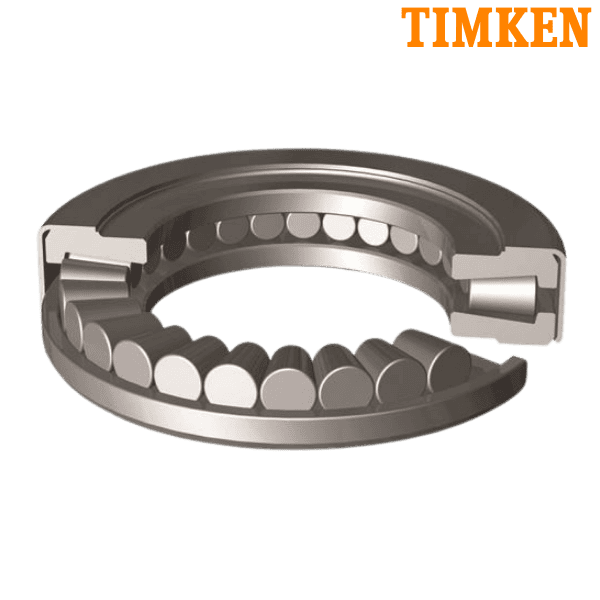

Category - Tapered Roller Thrust Bearing (TTCS Type)

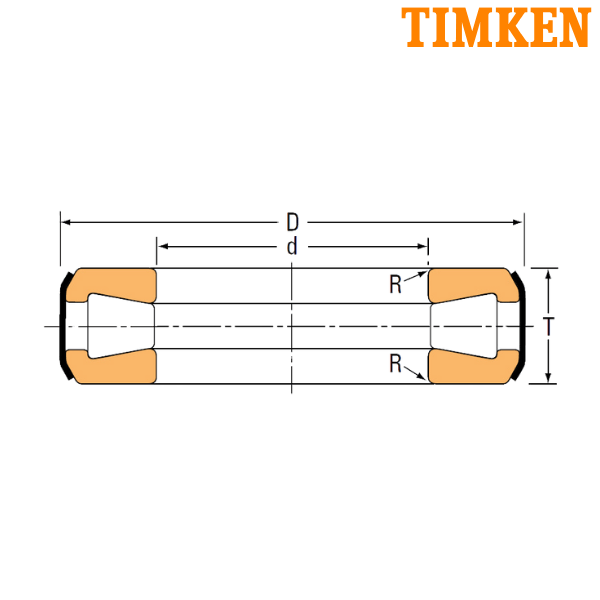

Bore Diameter (d) mm - 76.454
Bore Diameter (d) inch - 3.0100
Outer Diameter (D) mm - 133.350
Outer Diameter (D) inch - 5.2500
Width (T) mm - 33.338
Width (T) inch - 1.3125
Maximum Shaft Fillet Radius (R) mm - 2.3
Maximum Shaft Fillet Radius (R) inch - 0.09
Steering Pivot Rating (N) - 178500
Steering Pivot Rating (lbf) - 40000
Weight (kg) - 1.87
Weight (lbs) - 4.12
Oil Holes In Retainer - NO
Oil Holes In Retainer (Part Number) - T301W
** Images are for representation purposes only
