Description
Brand - TIMKEN
Item Number - T251 TIMKEN

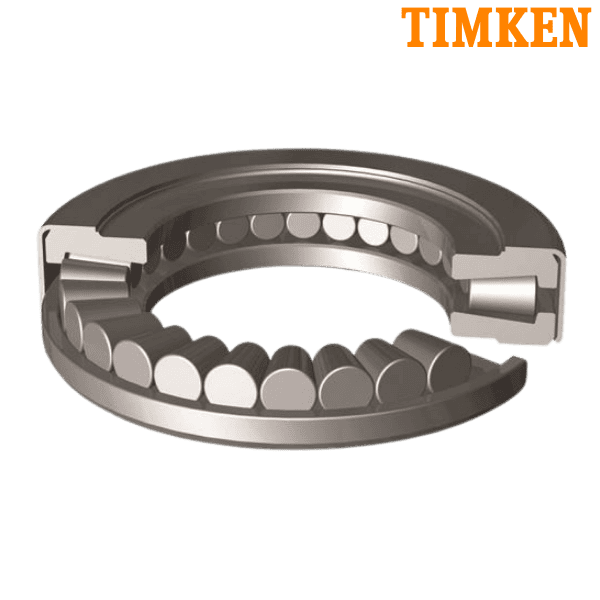

Category - Tapered Roller Thrust Bearing (TTC Type)

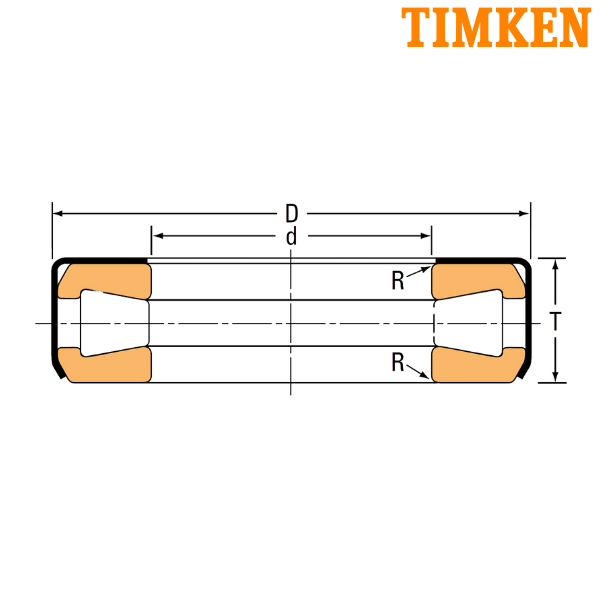

Bore Diameter (d) mm - 63.754
Bore Diameter (d) inch - 2.5100
Outer Diameter (D) mm - 111.125
Outer Diameter (D) inch - 4.3750
Width (T) mm - 26.988
Width (T) inch - 1.0625
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Steering Pivot Rating (N) - 124000
Steering Pivot Rating (lbf) - 27900
Weight (kg) - 1.07
Weight (lbs) - 2.36
Oil Holes In Retainer - NO
Oil Holes In Retainer (Part Number) - T251W
** Images are for representation purposes only
