Description
Brand - RBC
Item Number - T237S RBC
Category - Tapered Thrust Bearings
Type - Full Complement
Seal - Sealed

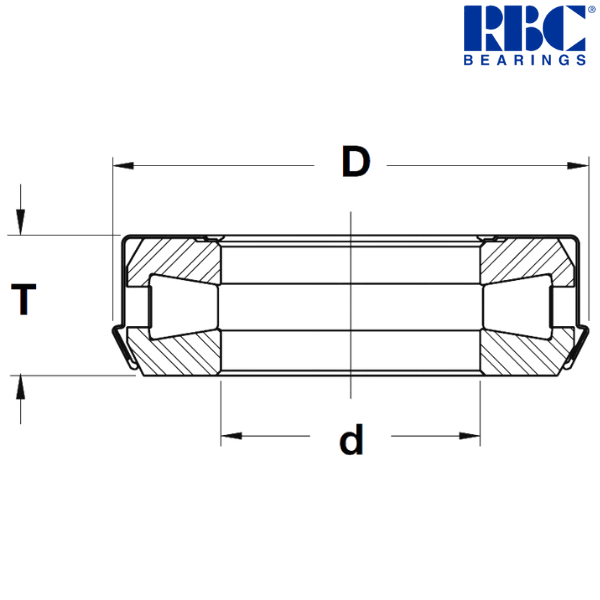

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 2.4 (± 0.006) inch
Outer Diameter (D) - 3.83 (Maximum) inch
Stack Height (T) - 0.814 (± 0.015) inch
Static Capacity - 108000 lbf
Dynamic Capacity - 48000 lbf
Bearing Weight - 1.12 lbs
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 61 (± 0.200) mm
Outer Diameter (D) - 97.3 (Maximum) mm
Stack Height (T) - 20.7 (± 0.400) mm
Static Capacity - 480600 kN
Dynamic Capacity - 213600 kN
Bearing Weight - 0.5 kg
Description of Suffixes and Prefixes :
T - Tapered Thrust Bearing
S - Sealed
Other salient points to be noted :
• RBC manufactures and stocks a complete range of tapered thrust bearings at its Oklahoma City, Oklahoma facility. These bearings are primarily used in heavy truck and trailer applications, including steer axles and landing gear. Thanks to their tapered roller design, they are also well-suited for various other applications that demand high thrust load capacity.
• Crafted from high-quality bearing steel and case hardened, both the rollers and thrust races offer outstanding wear resistance and fracture toughness. RBC designs feature a full complement of rollers, which helps maximize load capacity and reduce roller skewing.
• Some sizes are available with roller separators or cages, and the product line includes six different styles with options for integral seals, no seals, and various band configurations. Additionally, bearings can be pre-greased upon request.
Key Features :
• Case-hardened thrust washers and rollers for enhanced durability and wear resistance.
• Full complement of rollers ensures maximum load capacity and optimal performance.
• Designed for high thrust load handling in moderate speed applications.
• Available with a variety of seal and grease options to suit different operating conditions.
• Cylindrical roller designs offered for specific application needs.
• Backed by expert engineering support for custom solutions and technical assistance.

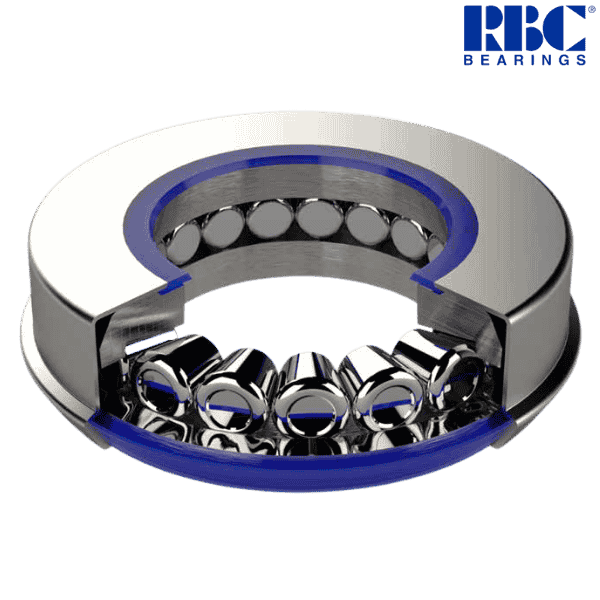

♦ ♦ Images are for representation purposes only
