Description
Brand - TIMKEN
Item Number - T208W TIMKEN

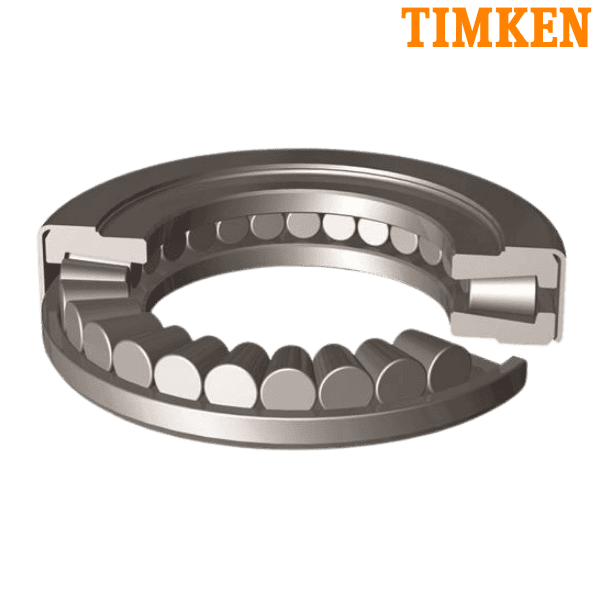

Category - Tapered Roller Thrust Bearing (TTC Type)

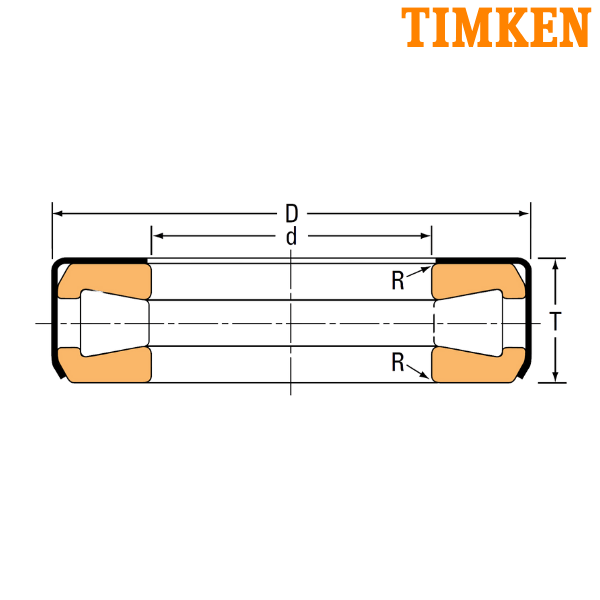

Bore Diameter (d) mm - 52.629
Bore Diameter (d) inch - 2.0720
Outer Diameter (D) mm - 93.269
Outer Diameter (D) inch - 3.6720
Width (T) mm - 26.975
Width (T) inch - 1.0620
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Steering Pivot Rating (N) - 86000
Steering Pivot Rating (lbf) - 19400
Weight (kg) - 0.79
Weight (lbs) - 1.74
Oil Holes In Retainer - YES
No Oil Holes In Retainer (Part Number) - T208
** Images are for representation purposes only
