Description
Brand - TIMKEN
Item Number - T202W TIMKEN
Category - Tapered Roller Thrust Bearing (TTC Type)
Bore Diameter (d) mm - 51.054
Bore Diameter (d) inch - 2.0100
Outer Diameter (D) mm - 93.269
Outer Diameter (D) inch - 3.6720
Width (T) mm - 26.975
Width (T) inch - 1.0620
Maximum Shaft Fillet Radius (R) mm - 3.3
Maximum Shaft Fillet Radius (R) inch - 0.13
Steering Pivot Rating (N) - 86000
Steering Pivot Rating (lbf) - 19400
Weight (kg) - 0.80
Weight (lbs) - 1.76
Oil Holes In Retainer - YES
No Oil Holes In Retainer (Part Number) - T202

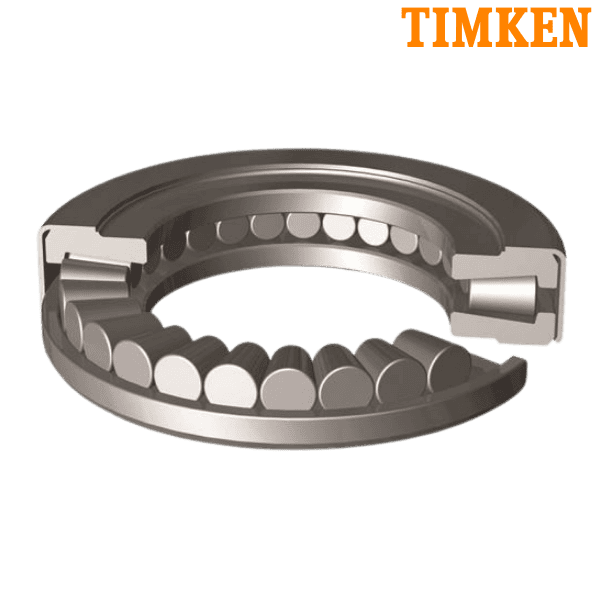

** Images are for representation purposes only
