Description
Brand - TIMKEN
Item Number - T200A TIMKEN
Category - Tapered Roller Thrust Bearing (TTHD Type)
Cage Type - Machined

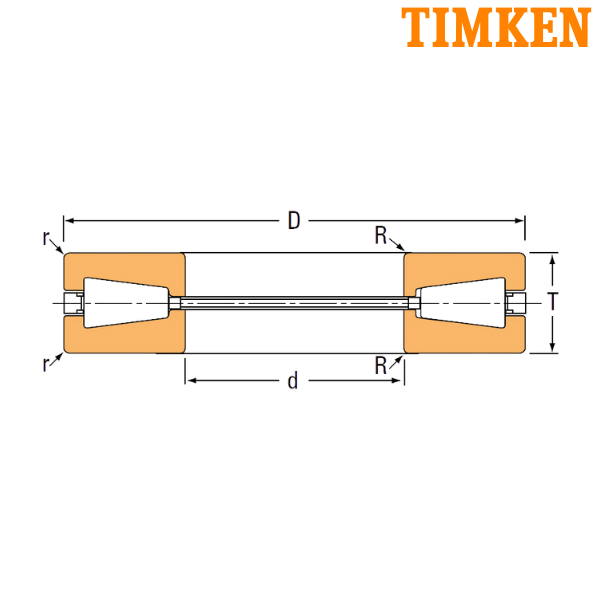

Bore Diameter (d) mm - 50.800
Bore Diameter (d) inch - 2.0000
Outer Diameter (D) mm - 109.538
Outer Diameter (D) inch - 4.3125
Width (T) mm - 22.225
Width (T) inch - 0.8750
Maximum Shaft Fillet Radius (R) mm - 2.3
Maximum Shaft Fillet Radius (R) inch - 0.09
Maximum Housing Fillet Radius (r) mm - 2.3
Maximum Housing Fillet Radius (r) inch - 0.09
Static Load Rating (C0) N - 804000
Static Load Rating (C0) lbf - 181000
Dynamic Load Rating (Ca90) N - 73100
Dynamic Load Rating (Ca90) lbf - 16400
Weight (kg) - 1.04
Weight (lbs) - 2.30
TTHD - Heavy Duty Tapered Roller Thrust Bearing

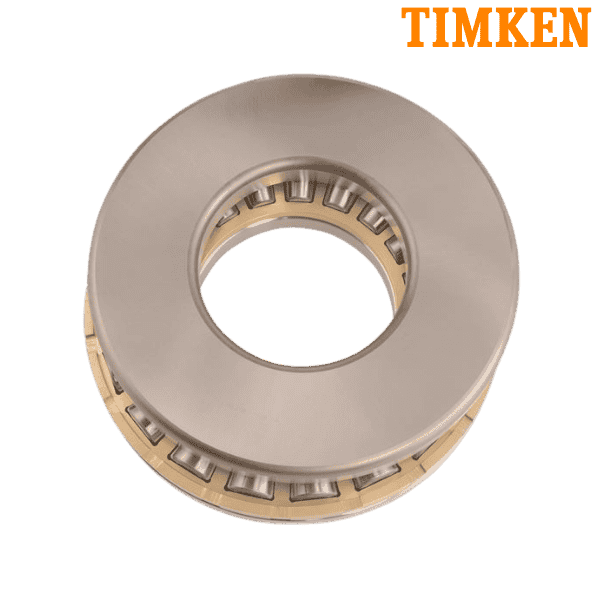

** Images are for representation purposes only
