| Inner Diameter | 44.623 mm |
| Outer Diameter | 76.2 mm |
| Height | 10.922 mm |
| Bearing Weight | 0.2 kg |
| Basic Static Load Rating, Axial | 31600.0 N |
| Chamfer Diameter | 1.6 mm |
Description

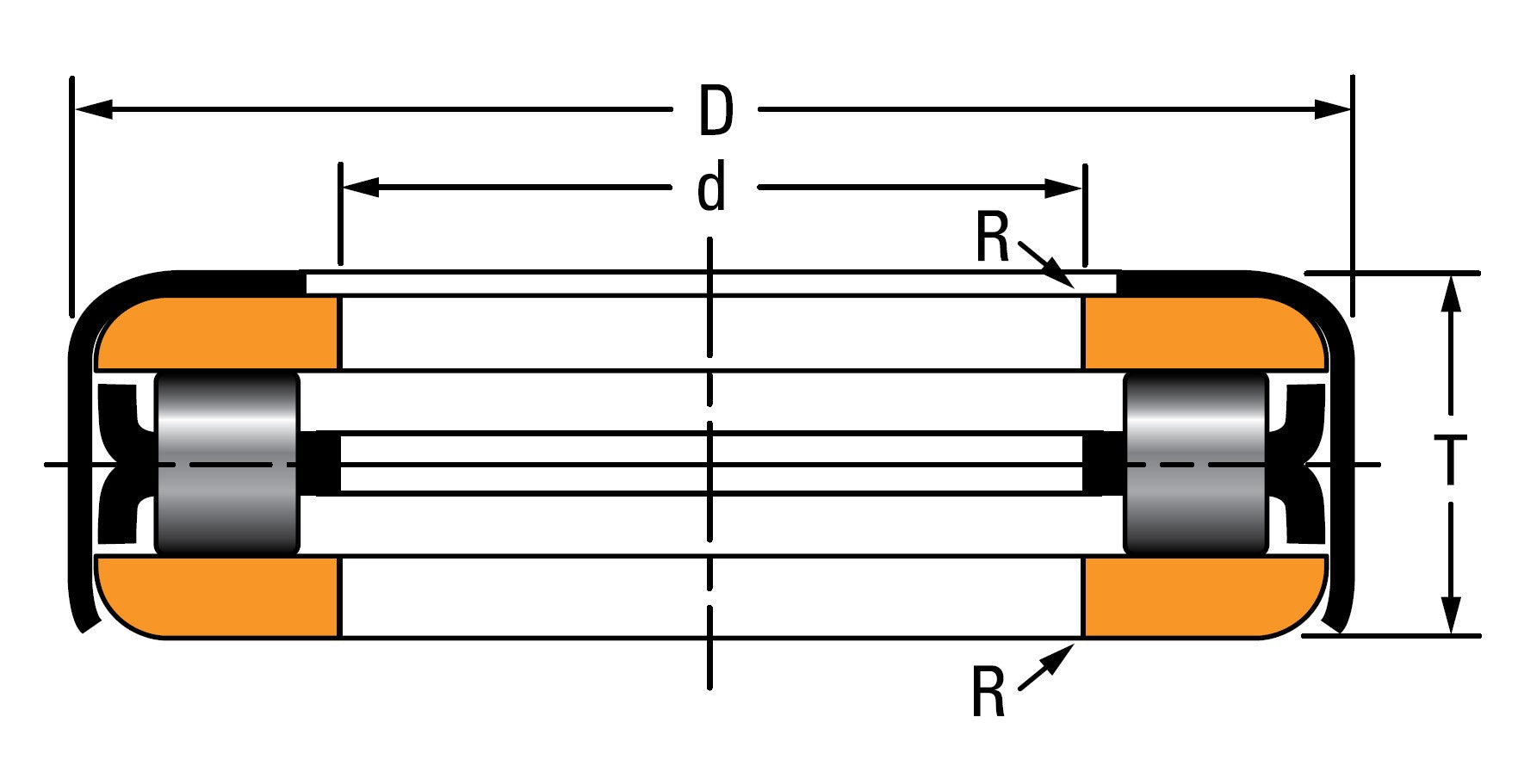

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
T – Height
R – Chamfer Diameter
Other salient points to be noted:
The Timken TTSPL is a premium light-duty thrust bearing tailored for steering pivot positions across various automotive and industrial sectors. Designed with an off-apex roller arrangement, this bearing utilizes a unique two-piece cage design. The entire assembly is held together by an outside stamped steel retainer, guaranteeing component security during shipping and easy, drop-in installation.
-
Application: Perfect for light-duty automotive and industrial steering pivot positions.
-
Component Structure: Comprised of two thrust tapered races, precision rollers, a specialized cage, and a robust outside retainer.
-
Design Profile: Features an off-apex roller arrangement for optimal load distribution.
-
Cage Construction: Equipped with a durable two-piece stamped steel cage.
-
Installation Ready: The stamped steel assembly retainer keeps all components securely together during transit and mounting.
** Images are for representation purposes only
