Description
Brand - TIMKEN
Item Number - T107W TIMKEN
Category - Tapered Roller Thrust Bearing (TTSP Type)
Bore Diameter (d) mm - 27.299
Bore Diameter (d) inch - 1.0720
Outer Diameter (D) mm - 50.800
Outer Diameter (D) inch - 2.0000
Width (T) mm - 15.875
Width (T) inch - 0.6250
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Steering Pivot Rating (N) - 18600
Steering Pivot Rating (lbf) - 4200
Weight (kg) - 0.12
Weight (lbs) - 0.26
Oil Holes In Retainer - YES
No Oil Holes In Retainer (Part Number) - T107
TTSP - Light-Duty, with Cage Tapered Roller Thrust Bearing

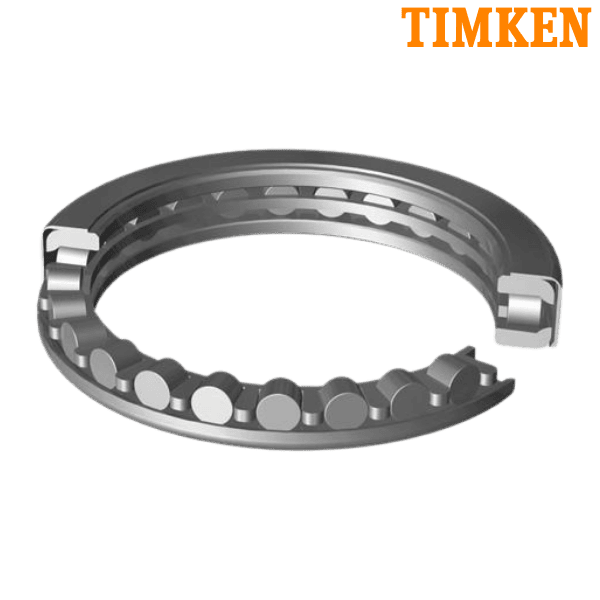

** Images are for representation purposes only
