T01-00525EAA KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - T01-00525EAA KAYDON
Also Known As - KDN.T01-00525EAA
Category - Reali-Slim TT Turntable Thin Section Bearings, External Gear

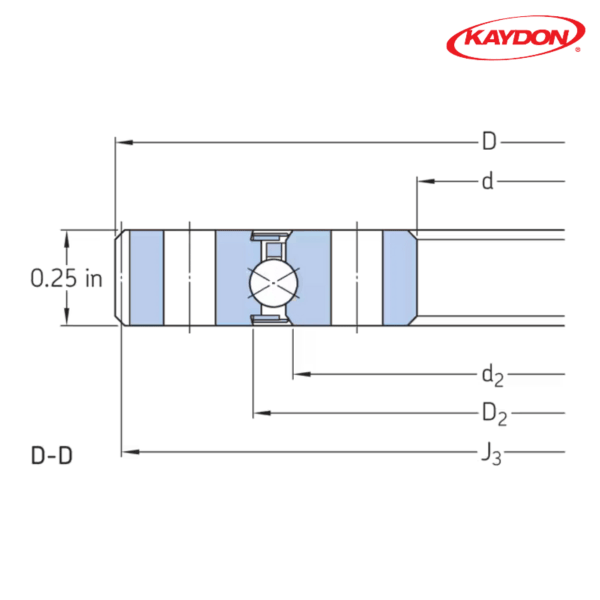

Inner Diameter (d) inch - 4.5
Outer Diameter (D) inch - 6.078
Recess Diameter Inner Ring (d2) inch - 5.148
Recess Diameter Outer Ring (D2) inch - 5.356
Dynamic Load Rating, Radial Direction (CK) lbf - 860
Basic Load Rating, Moment Dynamic (CM) lbf·inch - 1690
Basic Load Rating, Radial Static (C0) lbf - 1590
Basic Load Rating, Axial Static (C0a) lbf - 3980
Basic Load Rating, Moment Static (C0M) lbf·inch - 4180
Static Torque (lbf·inch) - 9.5
Weight (kg) - 0.37194544
Attachment Holes, Inner Ring (J) inch - 4.813
Attachment Holes, Outer Ring (J1) inch - 5.688
Gear (J3) inch - 6.047
Number of Teeth - 387

** Images are for representation purposes only
