T 212 SS BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Category - Housing in Stainless Steel (not Magnetic)
Item Number - T 212 SS BECO

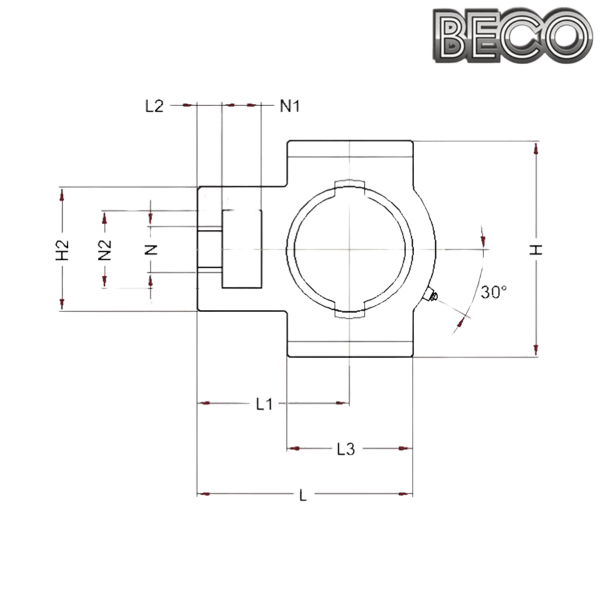

Diameter (D) mm - 110
Maximum Dimension (L) mm - 196
Maximum Dimension (L1) mm - 120
Maximum Dimension (L2) mm - 17
Maximum Dimension (L3) mm - 104
Maximum Dimension (H) mm - 152
Dimension (H1) mm - 130
Maximum Dimension (H2) mm - 104
Maximum Dimension (A) mm - 72
Dimension (A1) mm - 27.4 ± 0.6
Maximum Dimension (A2) mm - 56
Minimum Dimension (N) mm - 34
Minimum Dimension (N1) mm - 29
Minimum Dimension (N2) mm - 62
* Weight (kg) - 2.75

----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
T 212 SS + UC 212 BHTS ZZ C4 200° = UCT 212 BHTS ZZ C4 200°
T 212 SS + UC 212 BHTS 2RS VT 250°-280° = UCT 212 BHTS 2RS VT 250°-280°
T 212 SS + UC 212 BHTS ZZ 280° = UCT 212 BHTS ZZ 280°
T 212 SS + UC 212 BHTS ZZ 350° Beco Plus = UCT 212 BHTS ZZ 350° Beco Plus
T 212 SS + UC 212 BSS 2RS NSF H1 = UCT 212 BSS 2RS NSF H1

Note

* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding

** Images are for representation purposes only
