Description
Brand - BECO
Category - Housing in Stainless Steel (not Magnetic)
Item Number - T 211 SS BECO

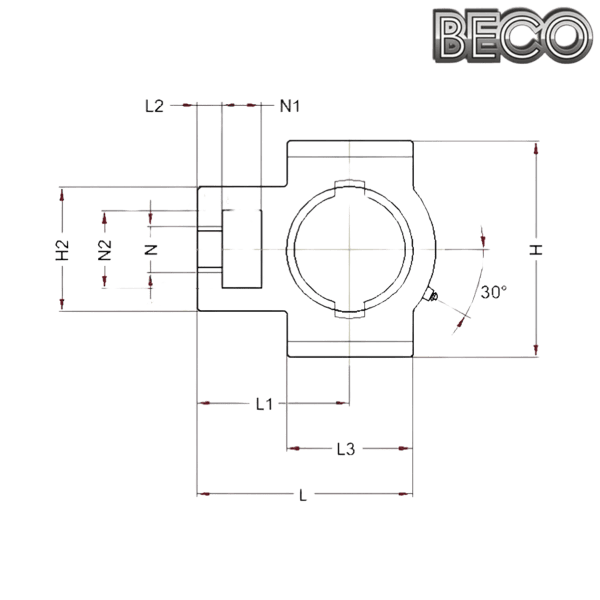

Diameter (D) mm - 100
Maximum Dimension (L) mm - 191
Maximum Dimension (L1) mm - 120
Maximum Dimension (L2) mm - 17
Maximum Dimension (L3) mm - 104
Maximum Dimension (H) mm - 152
Dimension (H1) mm - 130
Maximum Dimension (H2) mm - 104
Maximum Dimension (A) mm - 72
Dimension (A1) mm - 27.4 ± 0.6
Maximum Dimension (A2) mm - 56
Minimum Dimension (N) mm - 34
Minimum Dimension (N1) mm - 24
Minimum Dimension (N2) mm - 62
* Weight (kg) - 2.59
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
T 211 SS + UC 211 BHTS ZZ C4 200° = UCT 211 BHTS ZZ C4 200°
T 211 SS + UC 211 BHTS 2RS VT 250°-280° = UCT 211 BHTS 2RS VT 250°-280°
T 211 SS + UC 211 BHTS ZZ 280° = UCT 211 BHTS ZZ 280°
T 211 SS + UC 211 BHTS ZZ 350° Beco Plus = UCT 211 BHTS ZZ 350° Beco Plus
T 211 SS + UC 211 BSS 2RS NSF H1 = UCT 211 BSS 2RS NSF H1
Note
* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding
** Images are for representation purposes only
