T 210 SS BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Category - Housing in Stainless Steel (not Magnetic)
Item Number - T 210 SS BECO

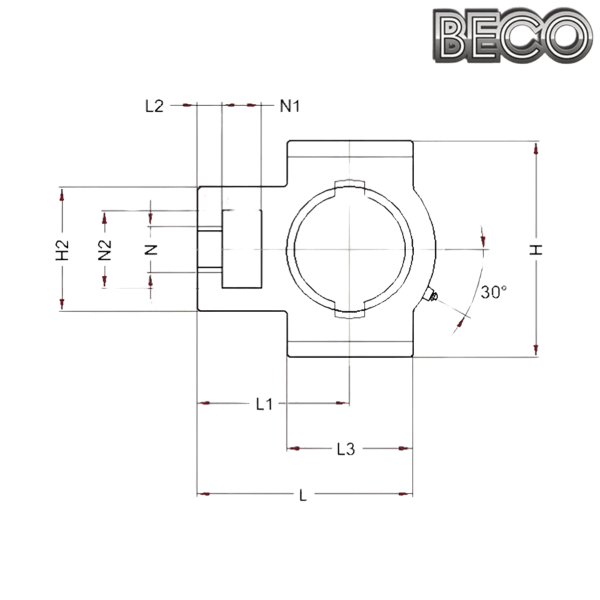

Diameter (D) mm - 90
Maximum Dimension (L) mm - 153
Maximum Dimension (L1) mm - 92
Maximum Dimension (L2) mm - 14
Maximum Dimension (L3) mm - 88
Maximum Dimension (H) mm - 124
Dimension (H1) mm - 101
Maximum Dimension (H2) mm - 85
Maximum Dimension (A) mm - 67
Dimension (A1) mm - 17.6 ± 0.4
Maximum Dimension (A2) mm - 50
Minimum Dimension (N) mm - 27
Minimum Dimension (N1) mm - 18
Minimum Dimension (N2) mm - 47
* Weight (kg) - 1.55

----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
T 210 SS + UC 210 BHTS ZZ C4 200° = UCT 210 BHTS ZZ C4 200°
T 210 SS + UC 210 BHTS 2RS VT 250°-280° = UCT 210 BHTS 2RS VT 250°-280°
T 210 SS + UC 210 BHTS ZZ 280° = UCT 210 BHTS ZZ 280°
T 210 SS + UC 210 BHTS ZZ 350° Beco Plus = UCT 210 BHTS ZZ 350° Beco Plus
T 210 SS + UC 210 BSS 2RS NSF H1 = UCT 210 BSS 2RS NSF H1

Note

* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding

** Images are for representation purposes only
