T 206 SS BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Category - Housing in Stainless Steel (not Magnetic)
Item Number - T 206 SS BECO

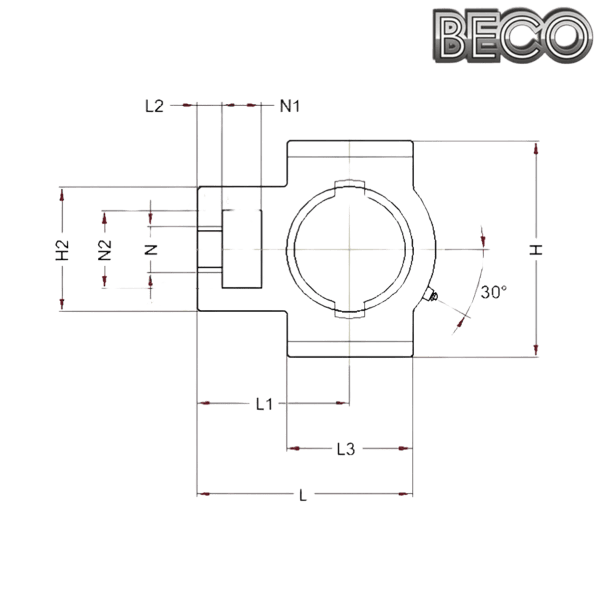

Diameter (D) mm - 62
Maximum Dimension (L) mm - 118
Maximum Dimension (L1) mm - 74
Maximum Dimension (L2) mm - 9
Maximum Dimension (L3) mm - 66
Maximum Dimension (H) mm - 107
Dimension (H1) mm - 89
Maximum Dimension (H2) mm - 66
Maximum Dimension (A) mm - 53
Dimension (A1) mm - 13.6 ± 0.4
Maximum Dimension (A2) mm - 38
Minimum Dimension (N) mm - 19
Minimum Dimension (N1) mm - 15
Minimum Dimension (N2) mm - 36
* Weight (kg) - 0.82

----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
T 206 SS + UC 206 BHTS ZZ C4 200° = UCT 206 BHTS ZZ C4 200°
T 206 SS + UC 206 BHTS 2RS VT 250°-280° = UCT 206 BHTS 2RS VT 250°-280°
T 206 SS + UC 206 BHTS ZZ 280° = UCT 206 BHTS ZZ 280°
T 206 SS + UC 206 BHTS ZZ 350° Beco Plus = UCT 206 BHTS ZZ 350° Beco Plus
T 206 SS + UC 206 BSS 2RS NSF H1 = UCT 206 BSS 2RS NSF H1

Note

* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding

** Images are for representation purposes only
