T 205 SS BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Category - Housing in Stainless Steel (not Magnetic)
Item Number - T 205 SS BECO

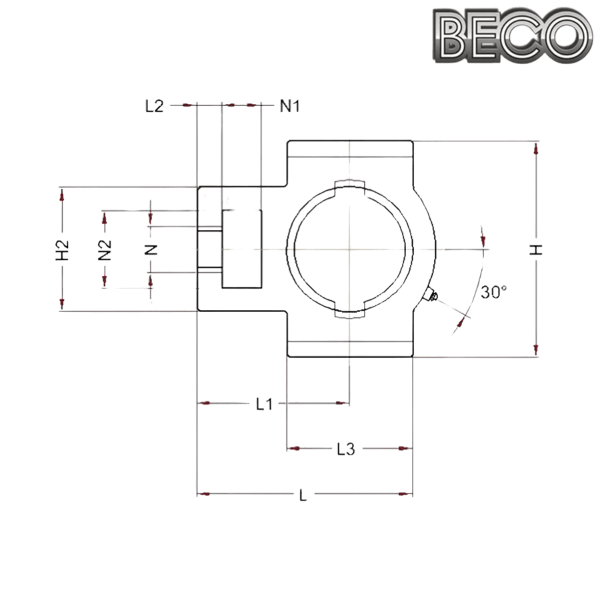

Diameter (D) mm - 52
Maximum Dimension (L) mm - 104
Maximum Dimension (L1) mm - 69
Maximum Dimension (L2) mm - 9
Maximum Dimension (L3) mm - 59
Maximum Dimension (H) mm - 94
Dimension (H1) mm - 76
Maximum Dimension (H2) mm - 64
Maximum Dimension (A) mm - 51
Dimension (A1) mm - 13.6 ± 0.4
Maximum Dimension (A2) mm - 38
Minimum Dimension (N) mm - 18
Minimum Dimension (N1) mm - 15
Minimum Dimension (N2) mm - 30
* Weight (kg) - 0.56

----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
T 205 SS + UC 205 BHTS ZZ C4 200° = UCT 205 BHTS ZZ C4 200°
T 205 SS + UC 205 BHTS 2RS VT 250°-280° = UCT 205 BHTS 2RS VT 250°-280°
T 205 SS + UC 205 BHTS ZZ 280° = UCT 205 BHTS ZZ 280°
T 205 SS + UC 205 BHTS ZZ 350° Beco Plus = UCT 205 BHTS ZZ 350° Beco Plus
T 205 SS + UC 205 BSS 2RS NSF H1 = UCT 205 BSS 2RS NSF H1

Note

* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding

** Images are for representation purposes only
