Description
Brand - CARTER
Item Number - SY-40-S CARTER
Category - Standard Stainless Cylindrical Sealed Yoke Roller

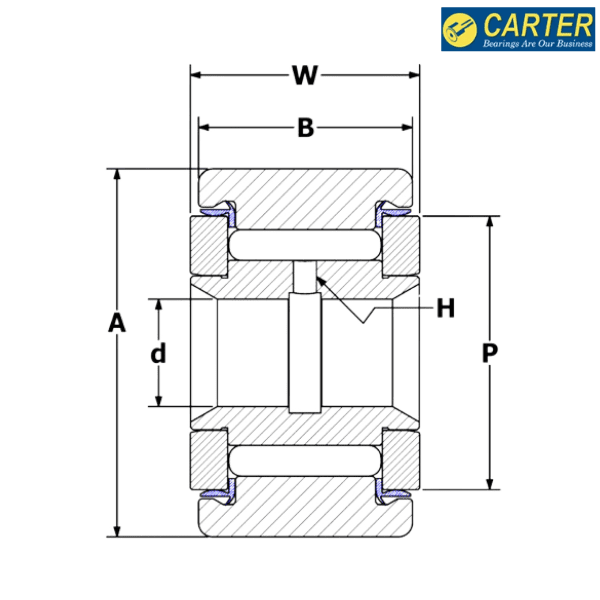

Imperial :
Roller Outer Diameter (A) inch - 1.25
Roller Width (B) inch - 0.75
Bore Diameter (D) inch - 0.375
Overall Width (W) inch - 0.8125
Oil Hole Diameter (H) inch - 0.09375
Minimum Boss Diameter (P) inch - 0.765625
Shaft Diameter(Ø) Push Fit (inch) - 0.3745
Shaft Diameter(Ø) Drive Fit (inch) - 0.3751
Shaft Diameter(Ø) Press Fit (inch) - 0.3753
Maximum Static Capacity (lbf) - 7700
Basic Dynamic Rating (lbf) - 3530
Limiting Speed (rpm) - 3100
Metric :
Roller Outer Diameter (A) mm - 31.75
Roller Width (B) mm - 19.05
Bore Diameter (D) mm - 9.525
Overall Width (W) mm - 20.6375
Oil Hole Diameter (H) mm - 2.38125
Minimum Boss Diameter (P) mm - 19.446875
Shaft Diameter(Ø) Push Fit (mm) - 9.5123
Shaft Diameter(Ø) Drive Fit (mm) - 9.52754
Shaft Diameter(Ø) Press Fit (mm) - 9.53262
Maximum Static Capacity (N) - 34251.294
Basic Dynamic Rating (N) - 15702.2166

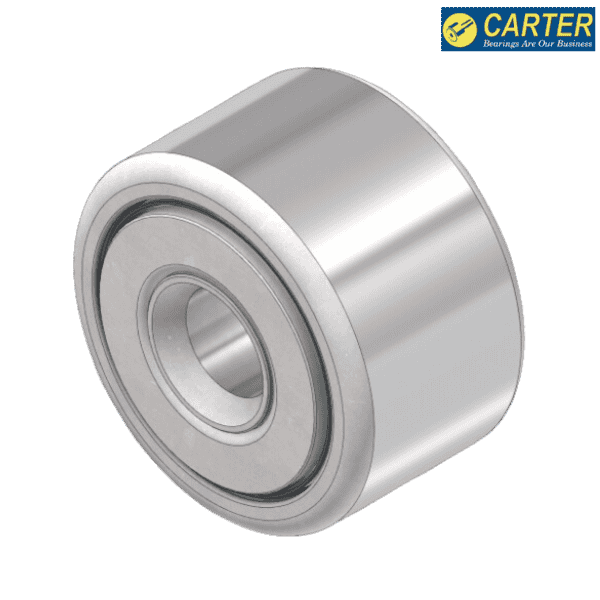

**Images are for representation purposes only
