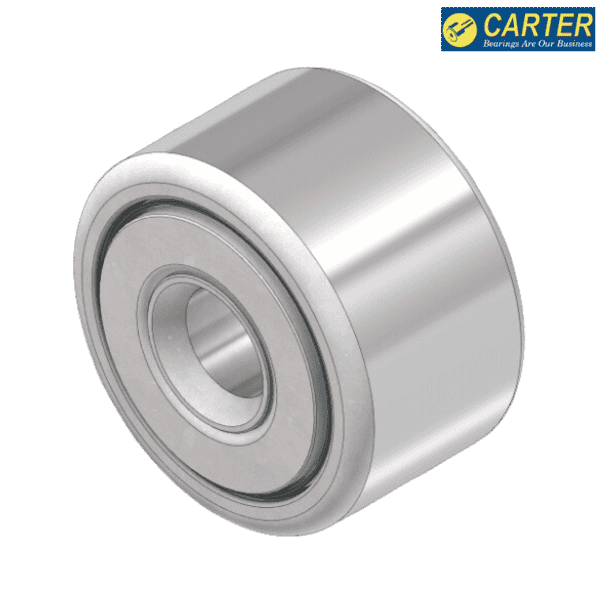

SY-28-S CARTER


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - CARTER
Item Number - SY-28-S CARTER
Category - Standard Stainless Cylindrical Sealed Yoke Roller

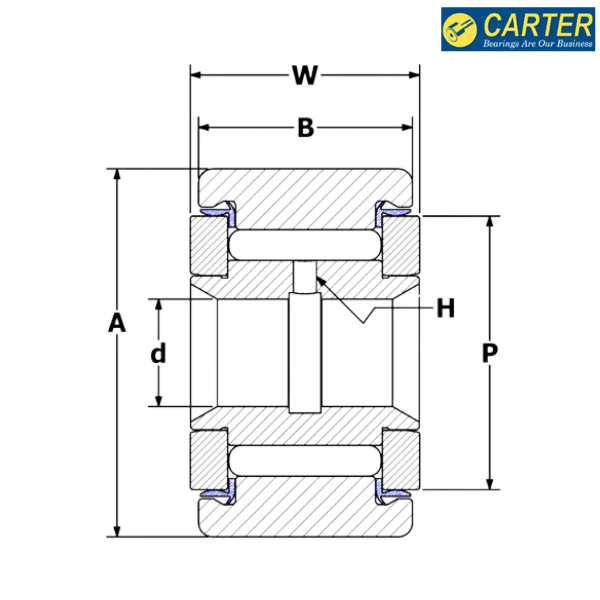

Imperial :
Roller Outer Diameter (A) inch - 0.875
Roller Width (B) inch - 0.5
Bore Diameter (D) inch - 0.25
Overall Width (W) inch - 0.5625
Oil Hole Diameter (H) inch - 0.09375
Minimum Boss Diameter (P) inch - 0.5
Shaft Diameter(Ø) Push Fit (inch) - 0.2495
Shaft Diameter(Ø) Drive Fit (inch) - 0.2501
Shaft Diameter(Ø) Press Fit (inch) - 0.2503
Maximum Static Capacity (lbf) - 2100
Basic Dynamic Rating (lbf) - 1490
Limiting Speed (rpm) - 5400

Metric :
Roller Outer Diameter (A) mm - 22.225
Roller Width (B) mm - 12.7
Bore Diameter (D) mm - 6.35
Overall Width (W) mm - 14.2875
Oil Hole Diameter (H) mm - 2.38125
Minimum Boss Diameter (P) mm - 12.7
Shaft Diameter(Ø) Push Fit (mm) - 6.3373
Shaft Diameter(Ø) Drive Fit (mm) - 6.35254
Shaft Diameter(Ø) Press Fit (mm) - 6.35762
Maximum Static Capacity (N) - 9341.262
Basic Dynamic Rating (N) - 6627.8478

**Images are for representation purposes only
