Description
Brand - ZEN
Item Number - SUCX-09 ZEN
Category - Stainless Steel Inserts (SUCX)

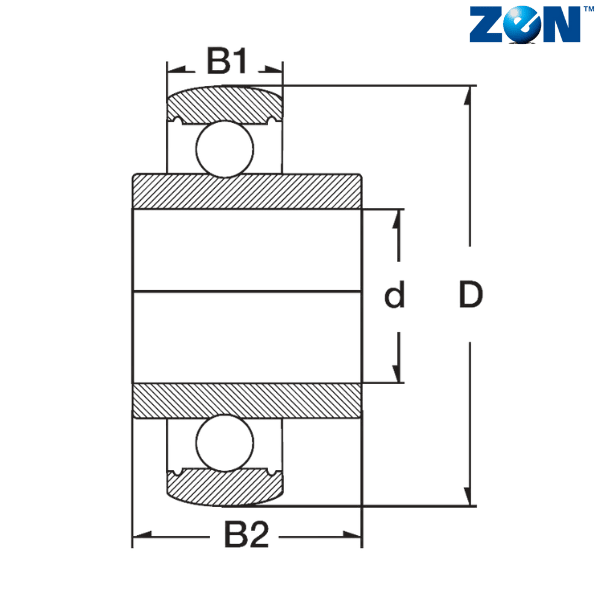

Inner Diameter (d) mm - 45
Outer Diameter (D) mm - 90
Minimum Width (B1) mm - 24
Maximum Width (B2) mm - 51.6
Dynamic Load Rating (N) - 27500
Static Load Rating (N) - 20200
Weight (kg) - 1.03
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420

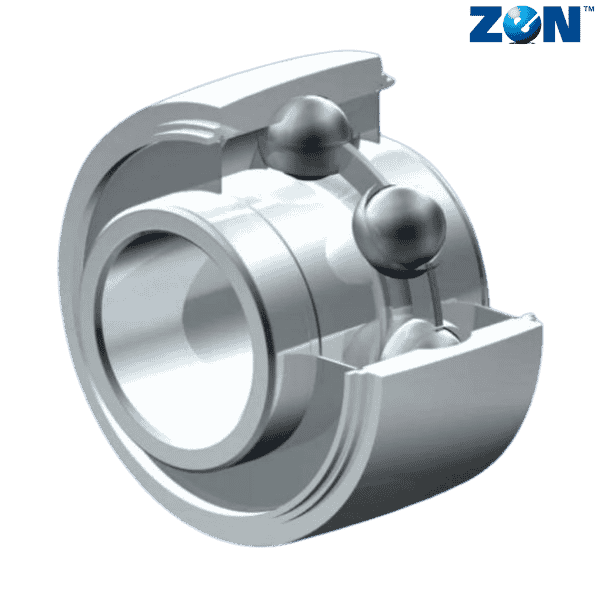

** Images are for representation purposes only
