Description

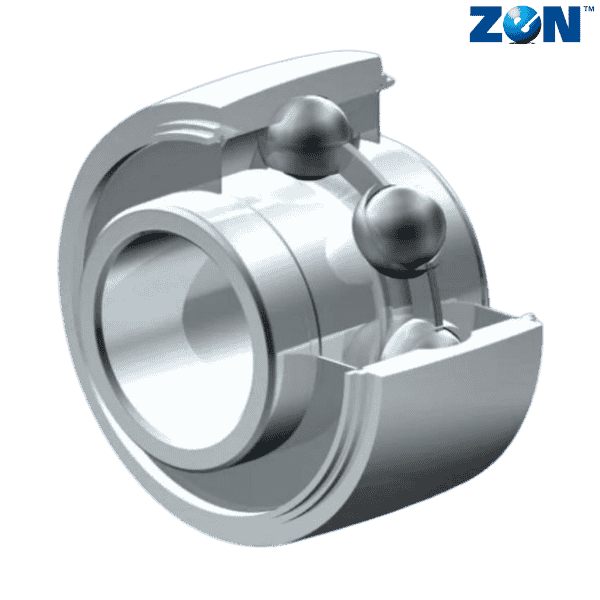

Brand - ZEN
Item Number - SUCX-04 ZEN
Category - Stainless Steel Inserts (SUCX)

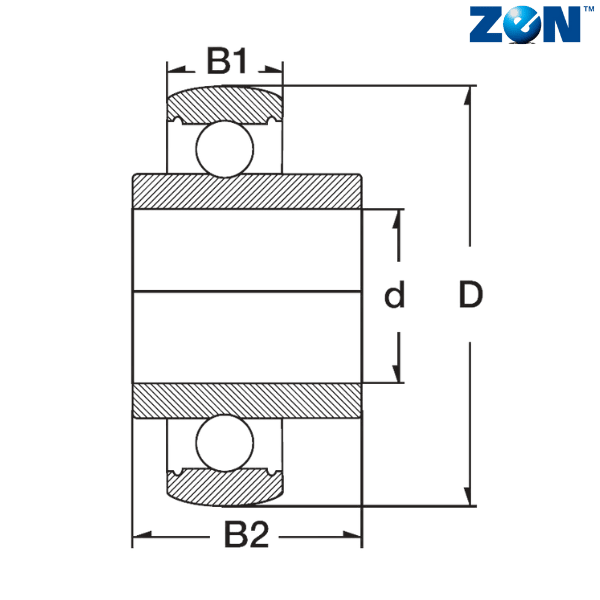

Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 52
Minimum Width (B1) mm - 17
Maximum Width (B2) mm - 34.1
Dynamic Load Rating (N) - 13900
Static Load Rating (N) - 7800
Weight (kg) - 0.19
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420
** Images are for representation purposes only
