Description
Brand - ZEN
Item Number - SUC218-90mm-FDA ZEN
Category - Stainless Steel Inserts (SUC) with FDA approved Grease
Inner Diameter (d) mm - 90
Outer Diameter (D) mm - 160
Minimum Diameter (B1) mm - 37
Maximum Diameter (B2) mm - 96
Dynamic Load Rating (N) - 74000
Static Load Rating (N) - 60500
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420
Grease - FDA

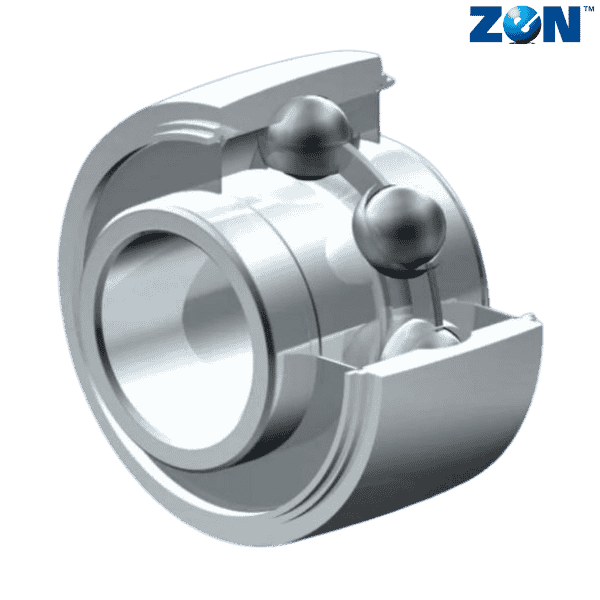

** Images are for representation purposes only
