Description
Brand - ZEN
Item Number - SUC216-80mm-FDA ZEN
Category - Stainless Steel Inserts (SUC) with FDA approved Grease
Inner Diameter (d) mm - 80
Outer Diameter (D) mm - 140
Minimum Diameter (B1) mm - 33
Maximum Diameter (B2) mm - 82.6
Dynamic Load Rating (N) - 55890
Static Load Rating (N) - 44620
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420
Grease - FDA

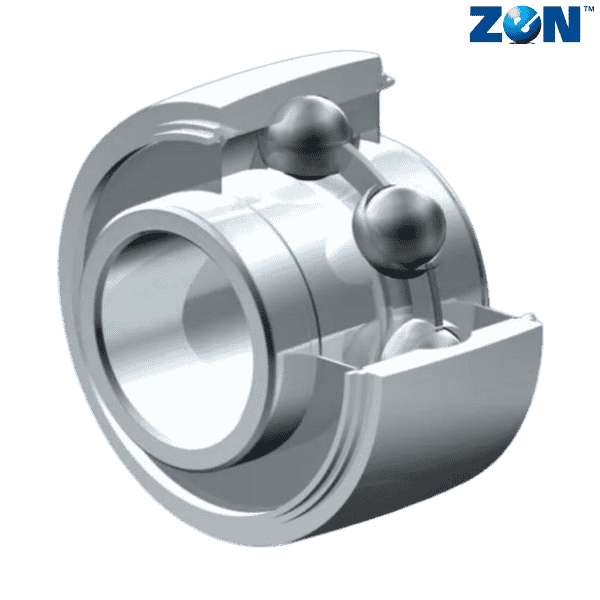

** Images are for representation purposes only
