Description
Brand - ZEN
Item Number - SUC212-37 ZEN
Category - Stainless Steel Inserts (SUC)
Inner Diameter (d) mm - 58.74
Outer Diameter (D) mm - 110
Minimum Width (B1) mm - 27
Maximum Width (B2) mm - 65.1
Dynamic Load Rating (N) - 36800
Static Load Rating (N) - 32800
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420

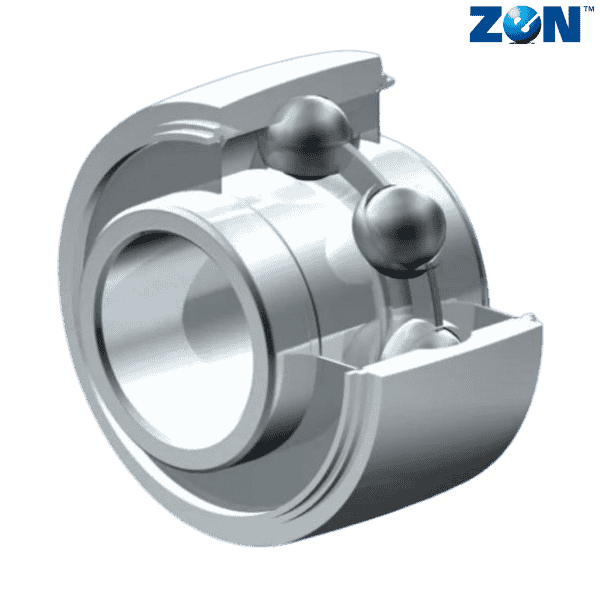

** Images are for representation purposes only
