Description
Brand - ZEN
Item Number - SUC209-26-FDA ZEN
Category - Stainless Steel Inserts (SUC) with FDA approved Grease
Inner Diameter (d) mm - 41.28
Outer Diameter (D) mm - 85
Minimum Diameter (B1) mm - 22
Maximum Diameter (B2) mm - 49.2
Dynamic Load Rating (N) - 25600
Static Load Rating (N) - 18100
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420
Grease - FDA

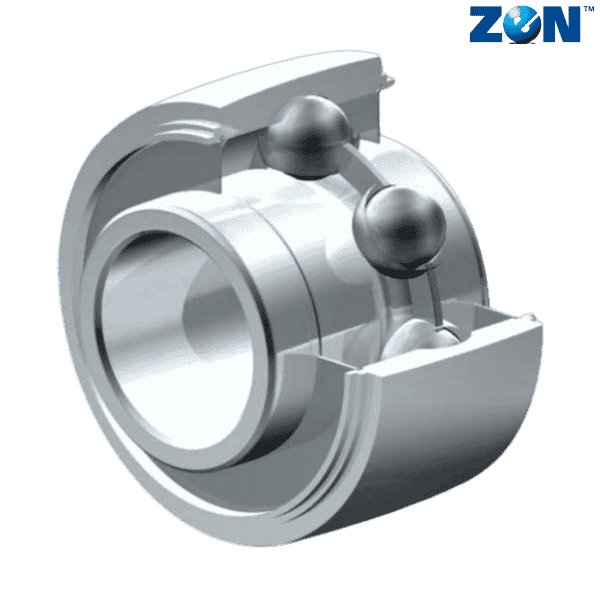

** Images are for representation purposes only
