Description
Brand - ZEN
Item Number - SUC205-14 ZEN
Category - Stainless Steel Inserts (SUC)

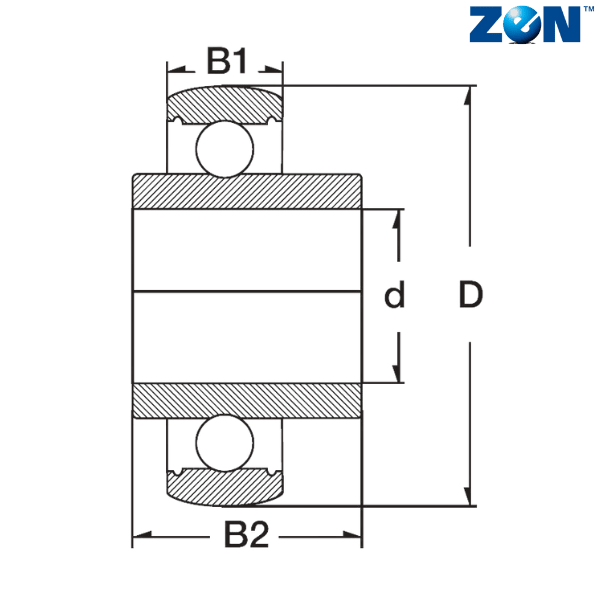

Inner Diameter (d) mm - 22.22
Outer Diameter (D) mm - 52
Minimum Width (B1) mm - 17
Maximum Width (B2) mm - 34.1
Dynamic Load Rating (N) - 11000
Static Load Rating (N) - 7100
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420

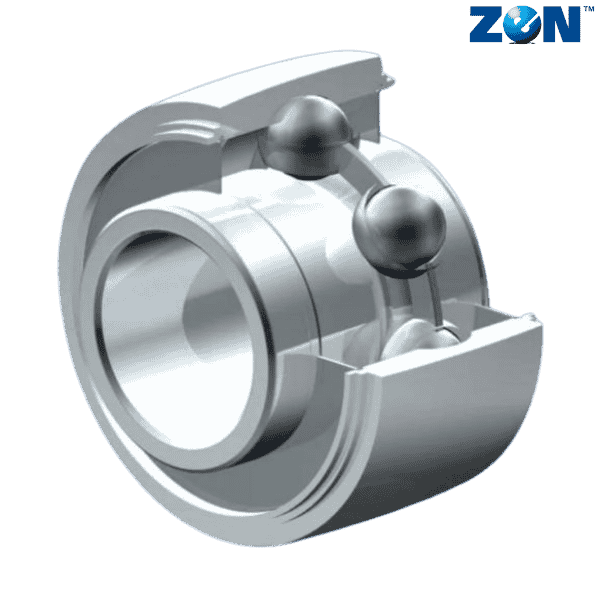

** Images are for representation purposes only
