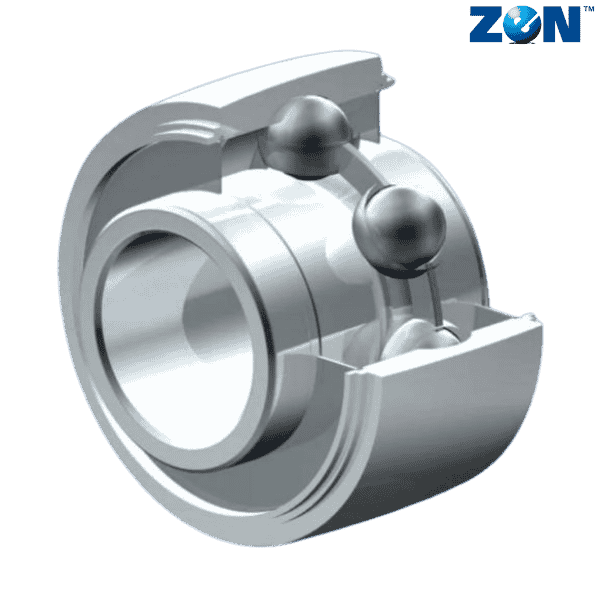

Description
Brand - ZEN
Item Number - SUC204-12-FDA ZEN
Category - Stainless Steel Inserts (SUC) with FDA approved Grease
Inner Diameter (d) mm - 19.05
Outer Diameter (D) mm - 47
Minimum Diameter (B1) mm - 17
Maximum Diameter (B2) mm - 31
Dynamic Load Rating (N) - 10000
Static Load Rating (N) - 6300
Outer Ring Material - AISI420
Inner Ring Material - AISI420
Ball Material - AISI420
Grease - FDA
** Images are for representation purposes only
