Description
Brand - ZEN
Item Number - SU006 ZEN
Category - Stainless steel Inserts (SU)
Shaft Diameter (d) mm - 30
Outer Diameter (D) mm - 55
L (mm) - 26.5
Bi (mm) - 18.5
Be (mm) - 13
r (mm) - 1.5
n (mm) - 6.5
k (mm) - 12
w (mm) - 42
a (mm) - 5
ds (mm) - M5X0.8
Dynamic Load Rating (N) - 1150
Static Load Rating (N) - 675
Weight (kg) - 0.23

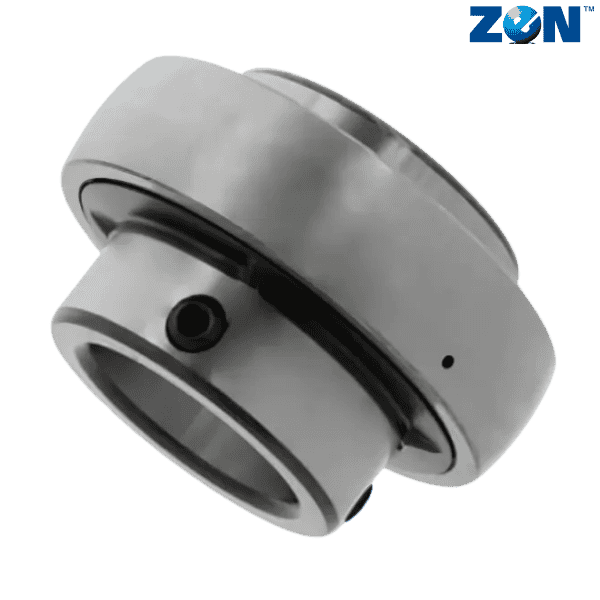

** Images are for representation purposes only
