Description

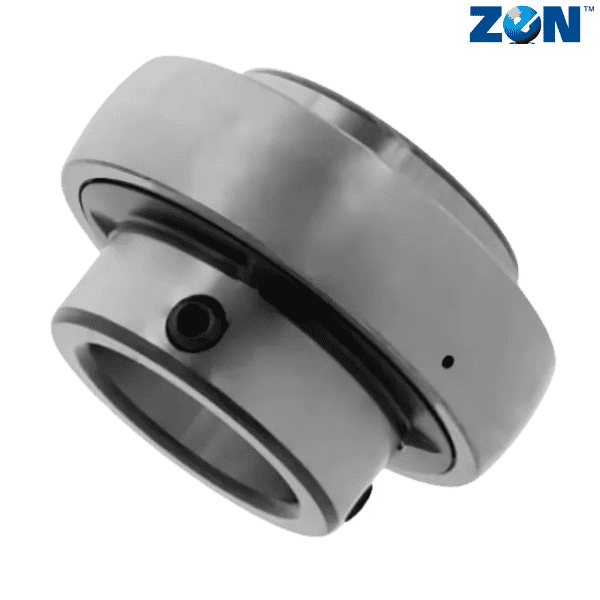

Brand - ZEN
Item Number - SU005 ZEN
Category - Stainless steel Inserts (SU)
Shaft Diameter (d) mm - 25
Outer Diameter (D) mm - 47
L (mm) - 25.5
Bi (mm) - 17.5
Be (mm) - 12
r (mm) - 1
n (mm) - 6
k (mm) - 12
w (mm) - 36
a (mm) - 5
ds (mm) - M5X0.8
Dynamic Load Rating (N) - 875
Static Load Rating (N) - 475
Weight (kg) - 0.17
** Images are for representation purposes only
