Description
Brand - ZEN
Item Number - SU004 ZEN
Category - Stainless steel Inserts (SU)
Shaft Diameter (d) mm - 20
Outer Diameter (D) mm - 42
L (mm) - 24.5
Bi (mm) - 16.5
Be (mm) - 12
r (mm) - 1
n (mm) - 6
k (mm) - 11
w (mm) - 30
a (mm) - 5
ds (mm) - M5X0.8
Dynamic Load Rating (N) - 810
Static Load Rating (N) - 410
Weight (kg) - 0.12

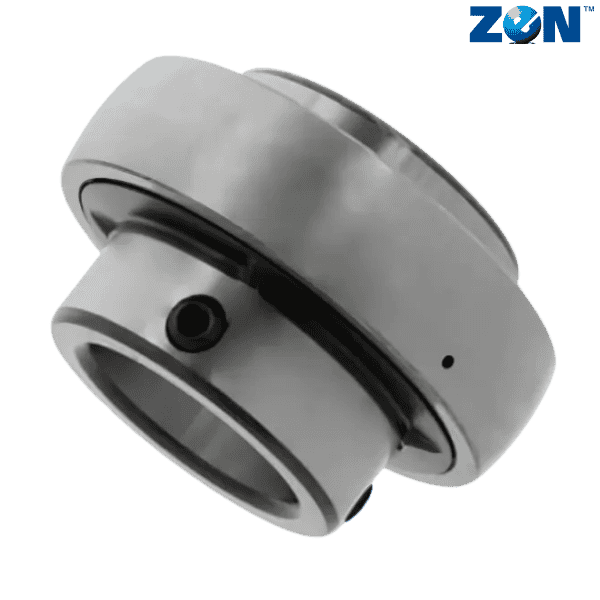

** Images are for representation purposes only
