Description
Brand - ZEN
Item Number - SU003 ZEN
Category - Stainless steel Inserts (SU)
Shaft Diameter (d) mm - 17
Outer Diameter (D) mm - 35
L (mm) - 20.5
Bi (mm) - 13.5
Be (mm) - 10
r (mm) - 0.5
n (mm) - 5
k (mm) - 9.5
w (mm) - 25
a (mm) - 3.5
ds (mm) - M4X0.7
Dynamic Load Rating (N) - 520
Static Load Rating (N) - 270
Weight (kg) - 0.08

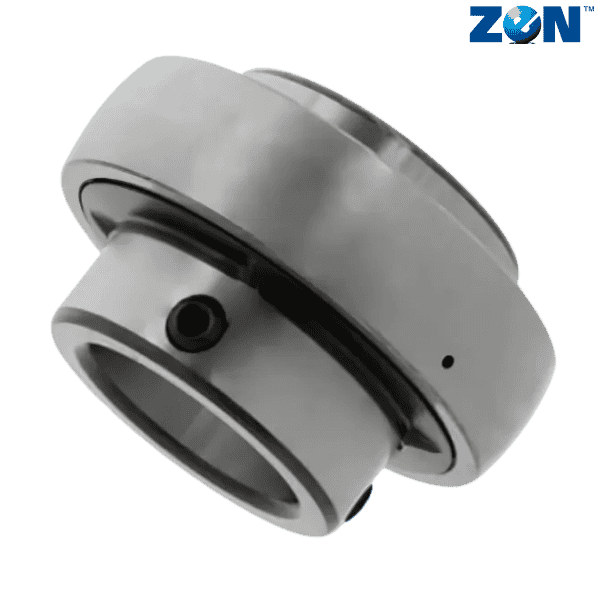

** Images are for representation purposes only
