Description

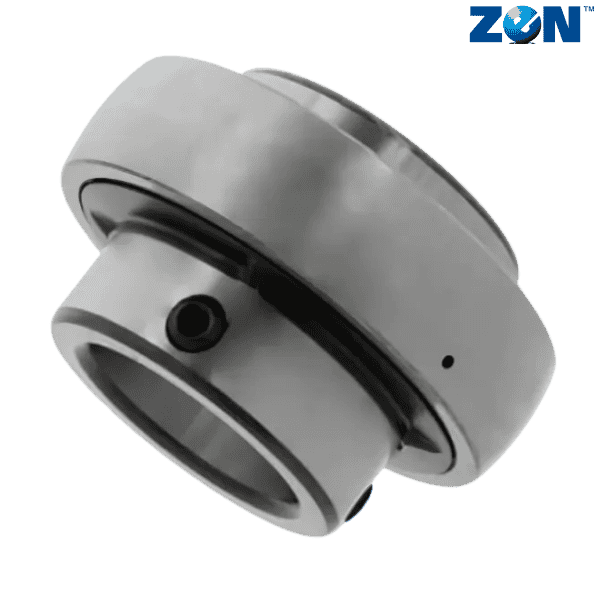

Brand - ZEN
Item Number - SU002 ZEN
Category - Stainless steel Inserts (SU)
Shaft Diameter (d) mm - 15
Outer Diameter (D) mm - 32
L (mm) - 18.5
Bi (mm) - 12
Be (mm) - 9
r (mm) - 0.5
n (mm) - 4.5
k (mm) - 8.5
w (mm) - 22
a (mm) - 3.5
ds (mm) - M4X0.7
Dynamic Load Rating (N) - 485
Static Load Rating (N) - 230
Weight (kg) - 0.06
** Images are for representation purposes only
