Description
Brand - ZEN
Item Number - SU000 ZEN
Category - Stainless steel Inserts (SU)
Shaft Diameter (d) mm - 10
Outer Diameter (D) mm - 26
L (mm) - 17.5
Bi (mm) - 11
Be (mm) - 8
r (mm) - 0.5
n (mm) - 4
k (mm) - 8.5
w (mm) - 17
a (mm) - 3.5
ds (mm) - M4X0.7
Dynamic Load Rating (N) - 400
Static Load Rating (N) - 160
Weight (kg) - 0.03

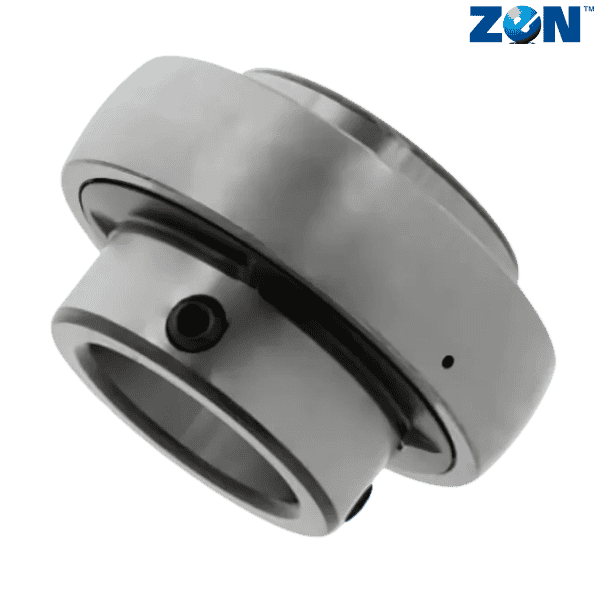

** Images are for representation purposes only
