STO-265X SILVERTHIN

Brand - SILVERTHIN
Item Number - STO-265X SILVERTHIN
Category - No Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 20.486 inch
Inside Diameter of Inner Ring (di) - 12.770 inch
Height of Overall Bearing Assembly (H) - 1.968 inch
Height of Inner/Outer Rings (Hi/Ho) - 1.732 inch
Approximate Weight - 61 lbs
Inner Ring Bolt Circle (Li) - 11.614 inch
Inner Ring Hole Count - 24 inch
Inner Ring Hole Size (Bi) - 0.594 inch
Outer Ring Bolt Circle (Lo) - 15.354 inch
Outer Ring Hole Count - 18
Outer Ring Hole Size (Bo) - 0.594 inch
Moment Rating - 48670 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 27.66 kg

Other salient points to be noted :
• Four-point contact ball
• Rectangular cross section
• Non-gear
• Internal clearance
• Dimensions up to 72” Outer Diameter

Interchange :
KAYDON - MTO-265X

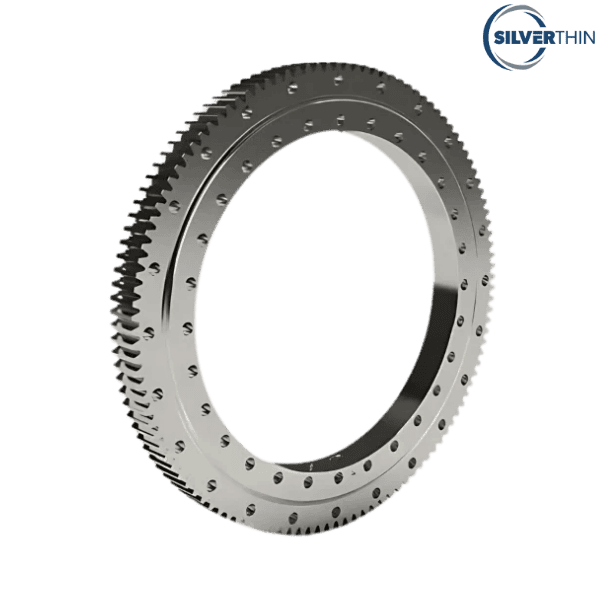

♦ ♦ Images are for representation purposes only
