STO-210T SILVERTHIN

Brand - SILVERTHIN
Item Number - STO-210T SILVERTHIN
Category - No Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 14.37 inch
Inside Diameter of Inner Ring (di) - 8.268 inch
Height of Overall Bearing Assembly (H) - 1.575 inch
Height of Inner/Outer Rings (Hi/Ho) - 1.496 inch
Approximate Weight - 38 lbs
Inner Ring Bolt Circle (Li) - 9.449 inch
Inner Ring Hole Count - 20
Inner Ring Hole Size (Bi) - 5/8-11
Outer Ring Bolt Circle (Lo) - 13.190 inch
Outer Ring Hole Count - 16
Outer Ring Hole Size (Bo) - 5/8-11
Moment Rating - 24170 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 17.23 kg

Other salient points to be noted :
• Four-point contact ball
• Rectangular cross section
• No gear
• Internal clearance
• Dimensions up to 72” Outer Diameter

Interchange :
KAYDON - MTO-210T

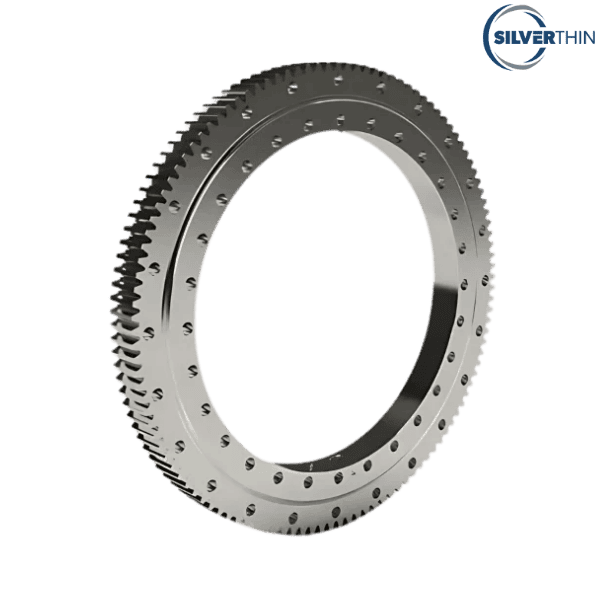

♦ ♦ Images are for representation purposes only
