STO-170 SILVERTHIN

Brand - SILVERTHIN
Item Number - STO-170 SILVERTHIN
Category - No Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 12.205 inch
Inside Diameter of Inner Ring (di) - 6.693 inch
Height of Overall Bearing Assembly (H) - 1.811 inch
Height of Inner/Outer Rings (Hi/Ho) - 1.614 inch
Approximate Weight - 33 lbs
Inner Ring Bolt Circle (Li) - 7.874 inch
Inner Ring Hole Count - 12
Inner Ring Hole Size (Bi) - 0.512 inch
Outer Ring Bolt Circle (Lo) - 11.024 inch
Outer Ring Hole Count - 12
Outer Ring Hole Size (Bo) - 0.512 inch
Moment Rating - 17080 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 14.97 kg

Other salient points to be noted :
• Four-point contact ball
• Rectangular cross section
• No gear
• Internal clearance
• Dimensions up to 72” Outer Diameter

Interchange :
KAYDON - MTO-170

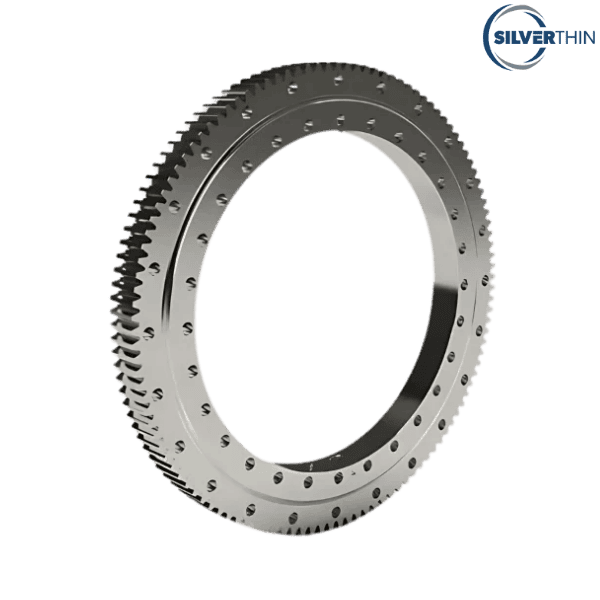

♦ ♦ Images are for representation purposes only
