STO-143 SILVERTHIN

Brand - SILVERTHIN
Item Number - STO-143 SILVERTHIN
Category - No Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 9.803 inch
Inside Diameter of Inner Ring (di) - 5.63 inch
Height of Overall Bearing Assembly (H) - 1.339 inch
Height of Inner/Outer Rings (Hi/Ho) - 1.142 inch
Approximate Weight - 15 lbs
Inner Ring Bolt Circle (Li) - 6.496 inch
Inner Ring Hole Count - 12
Inner Ring Hole Size (Bi) - 0.433 inch
Outer Ring Bolt Circle (Lo) - 8.937 inch
Outer Ring Hole Count - 12
Outer Ring Hole Size (Bo) - 0.433 inch
Moment Rating - 7080 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 6.8 kg

Other salient points to be noted :
• Four-point contact ball
• Rectangular cross section
• No gear
• Internal clearance
• Dimensions up to 72” Outer Diameter

Interchange :
KAYDON - MTO-143

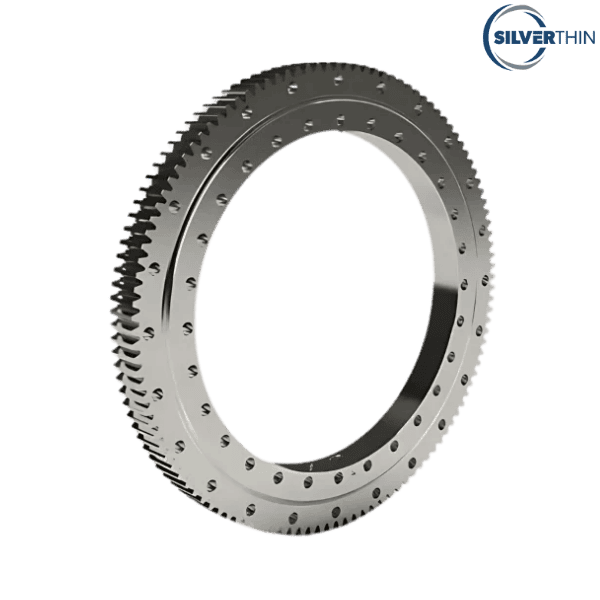

♦ ♦ Images are for representation purposes only
