STO-050T SILVERTHIN

Brand - SILVERTHIN
Item Number - STO-050T SILVERTHIN
Category - No Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 4.331 inch
Inside Diameter of Inner Ring (di) - 1.968 inch
Height of Overall Bearing Assembly (H) - 0.787 inch
Height of Inner/Outer Rings (Hi/Ho) - 0.728 inch
Approximate Weight - 2 lbs
Inner Ring Bolt Circle (Li) - 2.480 inch
Inner Ring Hole Count - 8
Outer Ring Bolt Circle (Lo) - 3.818 inch
Outer Ring Hole Count - 8
Moment Rating - 515 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.91 kg
Inner Ring Hole Size (Bi) - M6
Outer Ring Hole Size (Bo) - M6

Other salient points to be noted :
• Four-point contact ball
• Rectangular cross section
• No gear
• Internal clearance
• Dimensions up to 72” Outer Diameter

Interchange :
KAYDON - MTO-050T

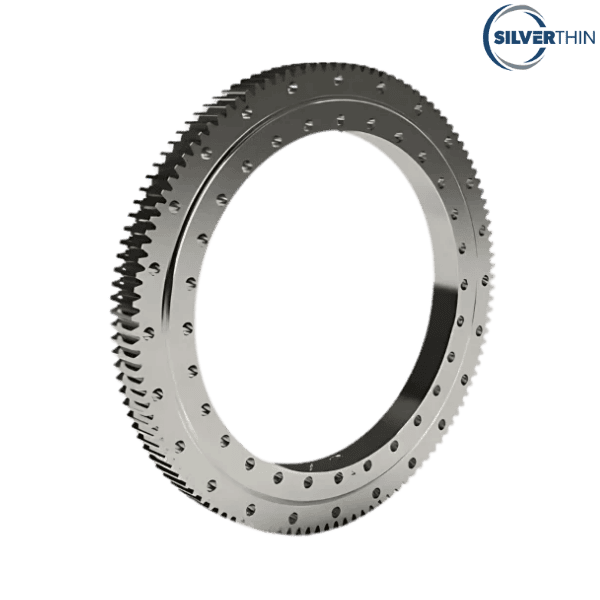

♦ ♦ Images are for representation purposes only
