STE-730 SILVERTHIN

Brand - SILVERTHIN
Item Number - STE-730 SILVERTHIN
Category - External Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 41.85 inch
Inside Diameter of Inner Ring (di) - 28.75 inch
Height of Overall Bearing Assembly (H) - 3.25 inch
Height of Inner/Outer Rings (Hi/Ho) - 2.88 inch
Approximate Weight - 491 lbs
Tooth Form - Stub inchvolute spur gear
Pitch Diameter of Gear (D2) - 41.2 inch
Diametral Pitch (Pd) - 2.5 inch
Maximum Gear Tooth Load (F2) - 21290 lbf
Number of Teeth (Z2) - 103 pcs.
Inner Ring Bolt Circle (Li) - 31 inch
Inner Ring Hole Count - 24
Inner Ring Hole Size (Bi) - 1.063 inch
Outer Ring Bolt Circle (Lo) - 38 inch
Outer Ring Hole Count - 20
Outer Ring Hole Size (Bo) - 1.063 inch
Moment Rating - 468100 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 222.68 kg

Other salient points to be noted :
• Four-point contact ball
• Rectangular cross section
• External gear, AGMA 8 quality
• Internal clearance
• Dimensions up to 72” Outer Diameter

Interchange :
KAYDON - MTE-730

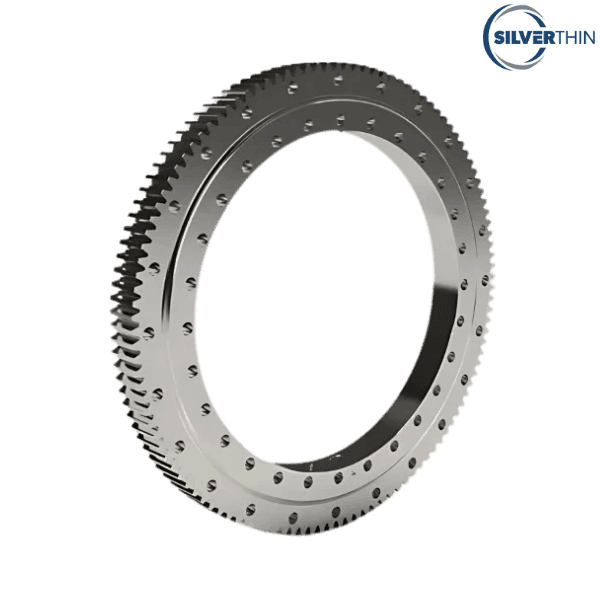

♦ ♦ Images are for representation purposes only
