STE-705T SILVERTHIN

Brand - SILVERTHIN
Item Number - STE-705T SILVERTHIN
Category - External Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 38.201 inch
Inside Diameter of Inner Ring (di) - 27.75 inch
Height of Overall Bearing Assembly (H) - 2.875 inch
Height of Inner/Outer Rings (Hi/Ho) - 2.563 inch
Approximate Weight - 325 lbs
Tooth Form - Stub inchvolute spur gear
Pitch Diameter of Gear (D2) - 37.667 inch
Diametral Pitch (Pd) - 3 inch
Maximum Gear Tooth Load (F2) - 17390 lbf
Number of Teeth (Z2) - 113 pcs.
Inner Ring Bolt Circle (Li) - 29.5 inch
Inner Ring Hole Count - 28
Inner Ring Hole Size (Bi) - 7/8-9
Outer Ring Bolt Circle (Lo) - 35.25 inch
Outer Ring Hole Count - 24
Outer Ring Hole Size (Bo) - 7/8-9
Moment Rating - 371940 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 147.39 kg

Other salient points to be noted :
• Four-point contact ball
• Rectangular cross section
• External gear, AGMA 8 quality
• Internal clearance
• Dimensions up to 72” Outer Diameter

Interchange :
KAYDON - MTE-705T

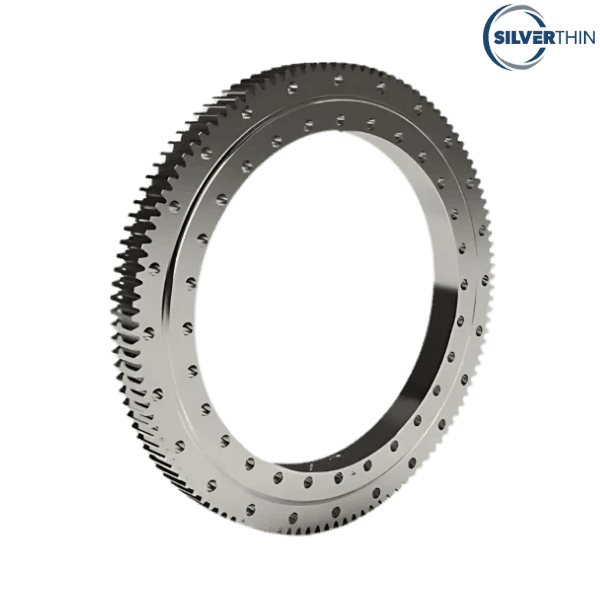

♦ ♦ Images are for representation purposes only
