STE-470T SILVERTHIN

Brand - SILVERTHIN
Item Number - STE-470T SILVERTHIN
Category - External Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 26.9 inch
Inside Diameter of Inner Ring (di) - 18.5 inch
Height of Overall Bearing Assembly (H) - 2.375 inch
Height of Inner/Outer Rings (Hi/Ho) - 2.063 inch
Approximate Weight - 147 lbs
Tooth Form - Stub inchvolute spur gear
Pitch Diameter of Gear (D2) - 26.5 inch
Diametral Pitch (Pd) - 4 inch
Maximum Gear Tooth Load (F2) - 10460 lbf
Number of Teeth (Z2) - 106 pcs.
Inner Ring Bolt Circle (Li) - 20 inch
Inner Ring Hole Count - 24
Inner Ring Hole Size (Bi) - 3/4-10
Outer Ring Bolt Circle (Lo) - 24.5 inch
Outer Ring Hole Count - 18
Outer Ring Hole Size (Bo) - 3/4-10
Moment Rating - 125300 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 66.67 kg

Other salient points to be noted :
• Four-point contact ball
• Rectangular cross section
• External gear, AGMA 8 quality
• Internal clearance
• Dimensions up to 72” Outer Diameter

Interchange :
KAYDON - MTE-470T

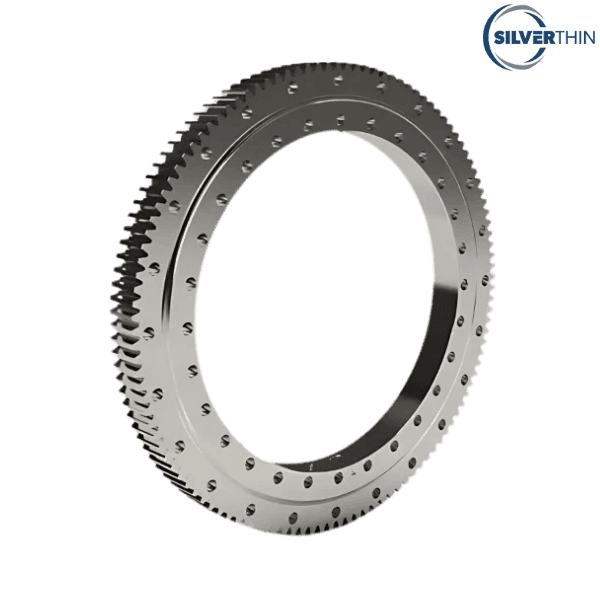

♦ ♦ Images are for representation purposes only
