STE-324T SILVERTHIN

Brand - SILVERTHIN
Item Number - STE-324T SILVERTHIN
Category - External Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 20.486 inch
Inside Diameter of Inner Ring (di) - 12.75 inch
Height of Overall Bearing Assembly (H) - 2.062 inch
Height of Inner/Outer Rings (Hi/Ho) - 2.022 inch
Approximate Weight - 105 lbs
Tooth Form - Fellows stub inchvolute spur gear
Pitch Diameter of Gear (D2) - 20.2 inch
Diametral Pitch (Pd) - 0.71 inch
Maximum Gear Tooth Load (F2) - 8700 lbf
Number of Teeth (Z2) - 101 pcs.
Inner Ring Bolt Circle (Li) - 14.375 inch
Inner Ring Hole Count - 20
Inner Ring Hole Size (Bi) - 5/8-11
Outer Ring Bolt Circle (Lo) - 18.875 inch
Outer Ring Hole Count - 20
Outer Ring Hole Size (Bo) - 5/8-11
Moment Rating - 62130 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 47.62 kg

Other salient points to be noted :
• Four-point contact ball
• Rectangular cross section
• External gear, AGMA 8 quality
• Internal clearance
• Dimensions up to 72” Outer Diameter

Interchange :
KAYDON - MTE-324T

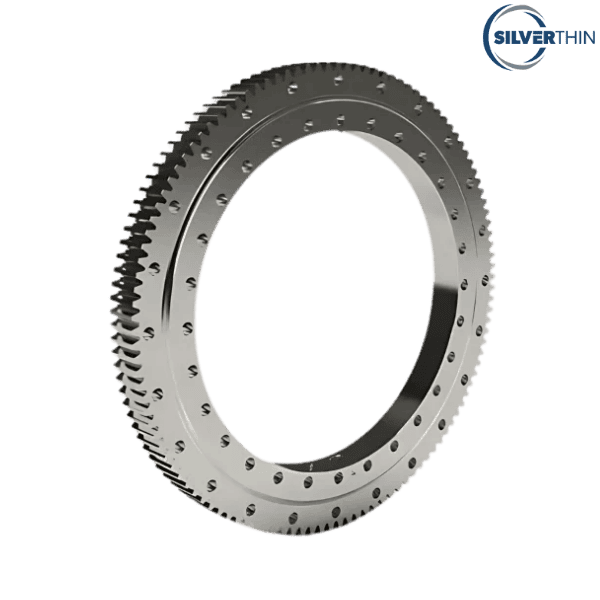

♦ ♦ Images are for representation purposes only
