STE-210X SILVERTHIN

Brand - SILVERTHIN
Item Number - STE-210X SILVERTHIN
Category - External Gear Slewing Ring Bearing

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Outer Ring (Do) - 14.686 inch
Inside Diameter of Inner Ring (di) - 8.268 inch
Height of Overall Bearing Assembly (H) - 1.968 inch
Height of Inner/Outer Rings (Hi/Ho) - 1.732 inch
Approximate Weight - 44 lbs
Tooth Form - Fellows stub involute spur gear
Pitch Diameter of Gear (D2) - 14.4 inch
Diametral pitch (Pd) - 0.71 inch
Maximum Gear Tooth Load (F2) - 7290 lbs
Number of Teeth (Z2) - 72 pcs.
Inner Ring Bolt Circle (Li) - 9.449 inch
Inner Ring Hole Count - 20
Inner Ring Hole Size (Bi) - 0.594 inch
Outer Ring Bolt Circle (Lo) - 13.190 inch
Outer Ring Hole Count - 16
Outer Ring Hole Size (Bo) - 0.594 inch
Moment Rating - 30720 ft-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 19.95 kg

Other salient points to be noted :
• Four-point contact ball
• Rectangular cross section
• External gear, AGMA 8 quality
• Internal clearance
• Dimensions up to 72” Outer Diameter

Interchange :
KAYDON - MTE-210X

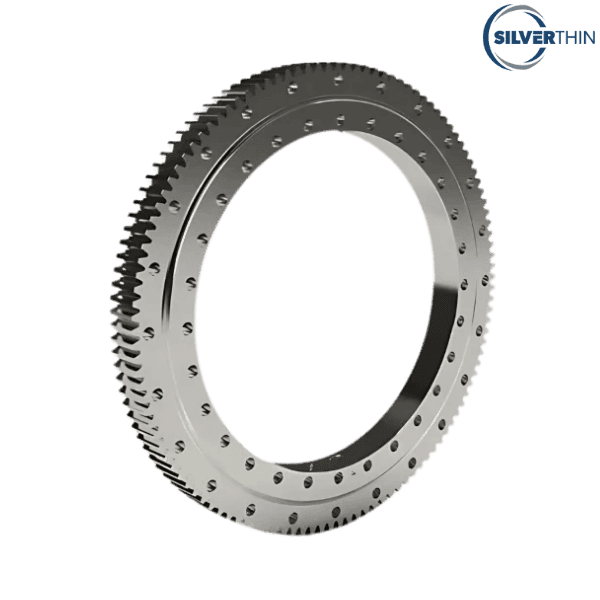

♦ ♦ Images are for representation purposes only
