Description
Brand - ZEN
Item Number - ST212 ZEN
Category - Stainless Steel Pillow Blocks (ST)

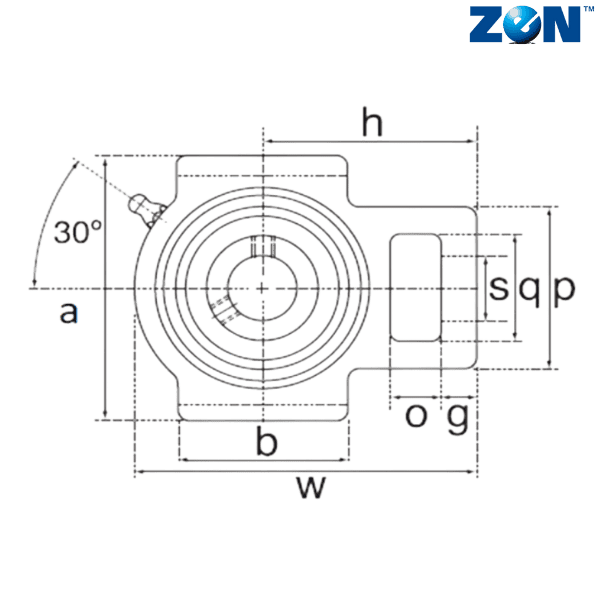

Inner Diameter (d) mm - 60
o (mm) - 32
g (mm) - 19
p (mm) - 102
q (mm) - 64
s (mm) - 35
b (mm) - 102
k (mm) - 22
e (mm) - 130
a (mm) - 146
w (mm) - 194
j (mm) - 64
l (mm) - 42
h (mm) - 119
Bi (mm) - 65.1
n (mm) - 25.4
Weight (kg) - 3.6
Bearing - SUC212

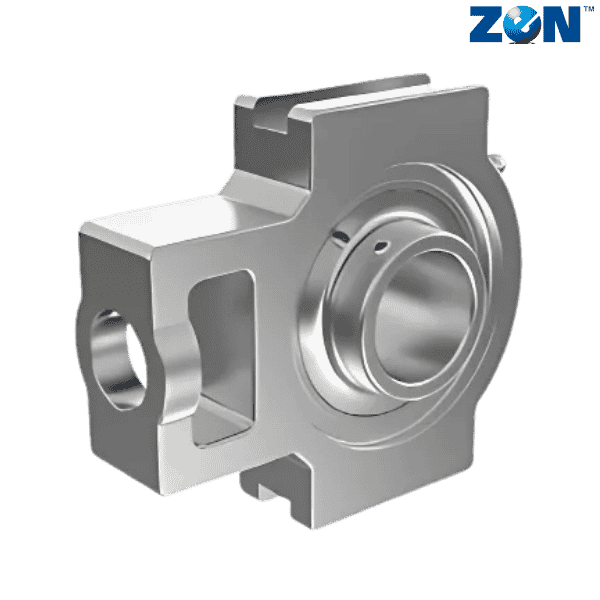

** Images are for representation purposes only
