Description

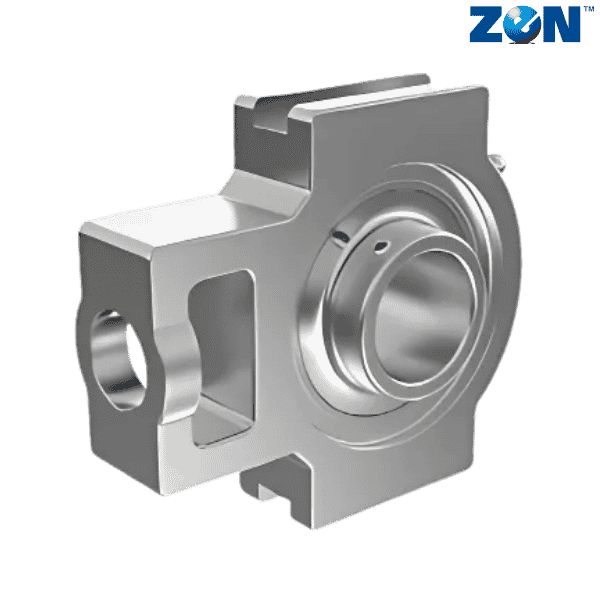

Brand - ZEN
Item Number - ST211 ZEN
Category - Stainless Steel Pillow Blocks (ST)
Inner Diameter (d) mm - 55

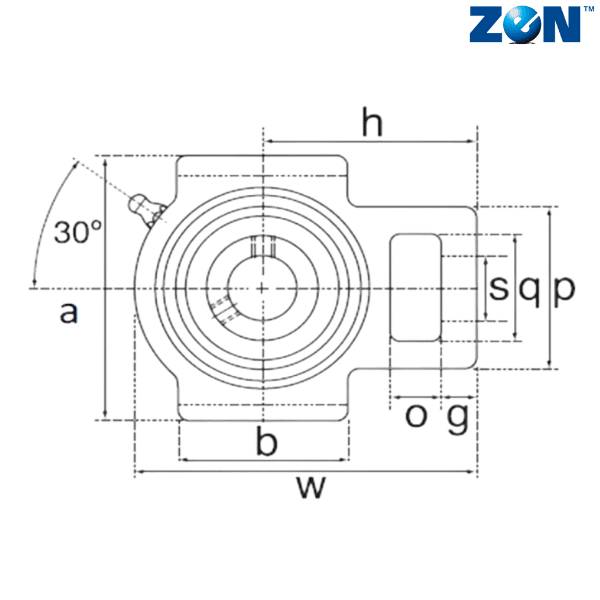

o (mm) - 25
g (mm) - 19
p (mm) - 102
q (mm) - 64
s (mm) - 35
b (mm) - 95
k (mm) - 22

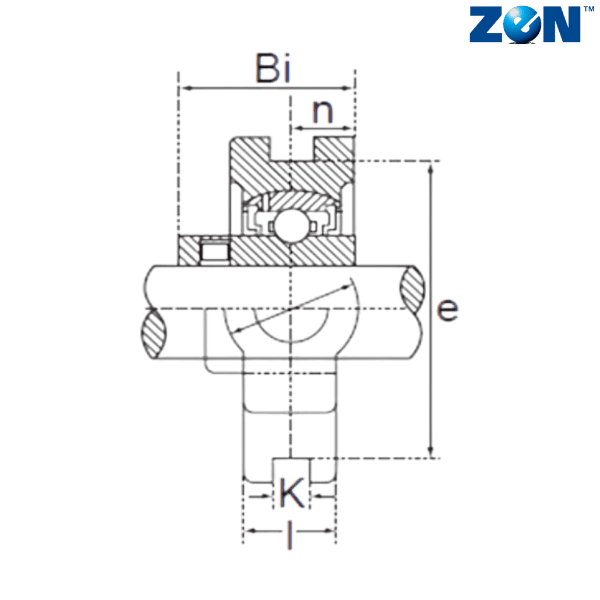

e (mm) - 130
a (mm) - 146
w (mm) - 171
j (mm) - 64
l (mm) - 38
h (mm) - 106
Bi (mm) - 55.6
n (mm) - 22.2
Weight (kg) - 3.1
Bearing - SUC211
** Images are for representation purposes only
