Description

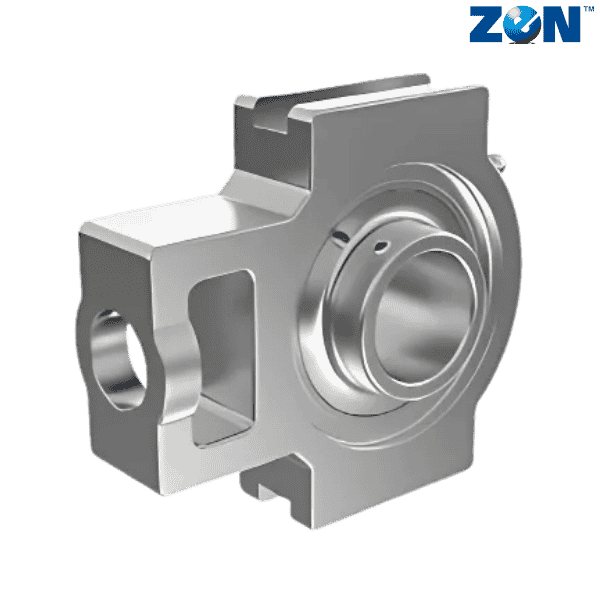

Brand - ZEN
Item Number - ST210 ZEN
Category - Stainless Steel Pillow Blocks (ST)

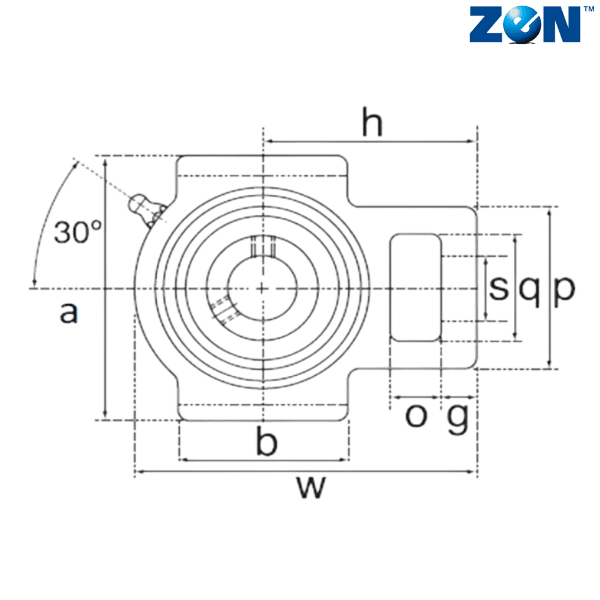

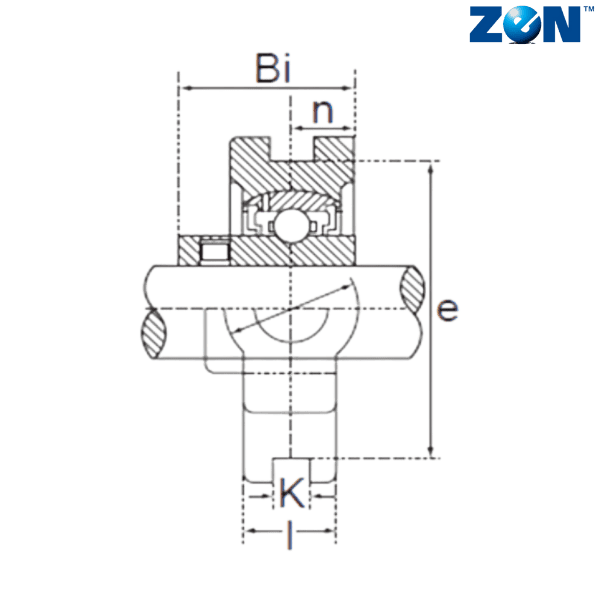

Inner Diameter (d) mm - 50
o (mm) - 19
g (mm) - 16
p (mm) - 83
q (mm) - 49
s (mm) - 29
b (mm) - 86
k (mm) - 16
e (mm) - 102
a (mm) - 117
w (mm) - 149
j (mm) - 49
l (mm) - 37
h (mm) - 90
Bi (mm) - 51.6
n (mm) - 19
Weight (kg) - 2.1
Bearing - SUC210
** Images are for representation purposes only
