Description
Brand - ZEN
Item Number - ST208 ZEN

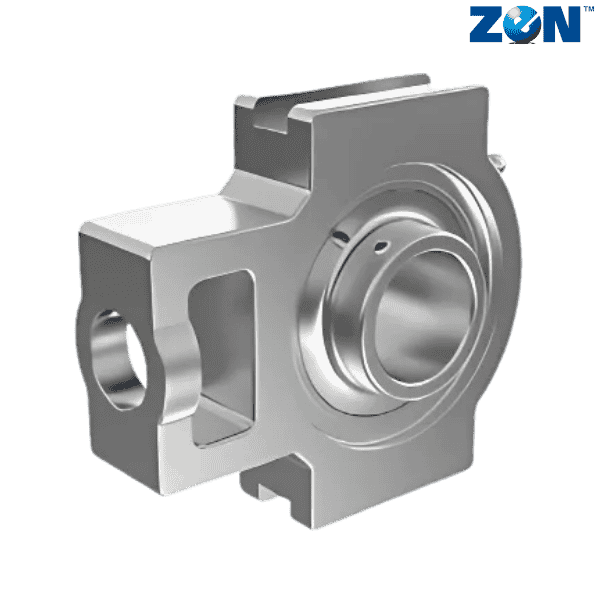

Category - Stainless Steel Pillow Blocks (ST)

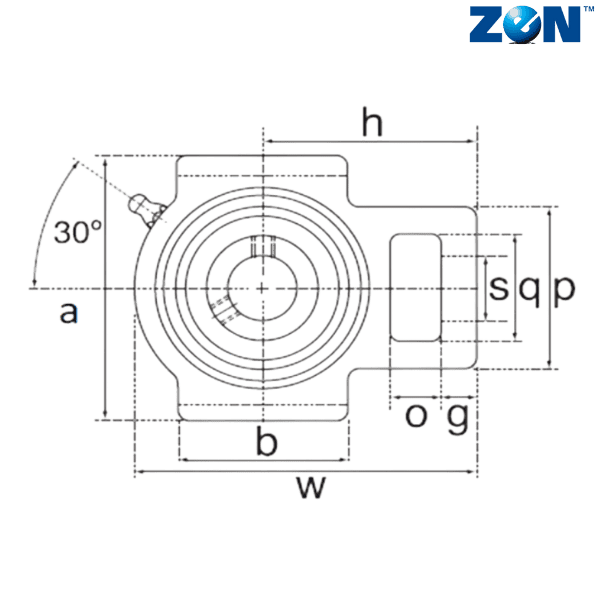

Inner Diameter (d) mm - 40
o (mm) - 19
g (mm) - 16
p (mm) - 83
q (mm) - 49
s (mm) - 29
b (mm) - 83
k (mm) - 16
e (mm) - 102
a (mm) - 114
w (mm) - 144
j (mm) - 49
l (mm) - 33
h (mm) - 88

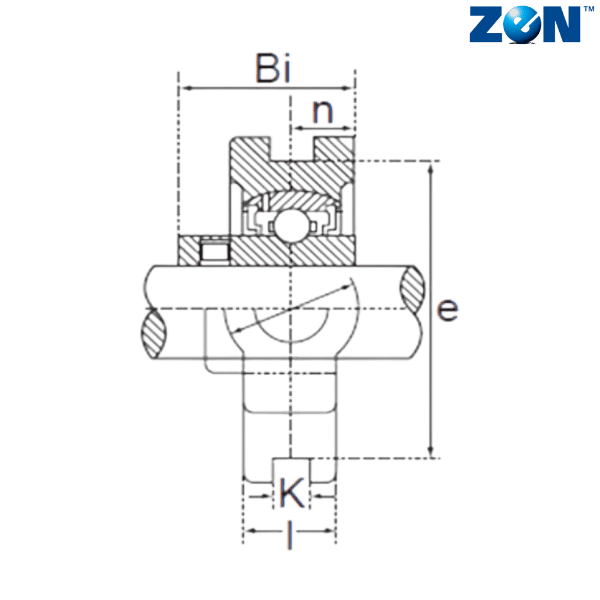

Bi (mm) - 49.2
n (mm) - 19
Weight (kg) - 2.05
Bearing - SUC208
** Images are for representation purposes only
