Description
Brand - ZEN

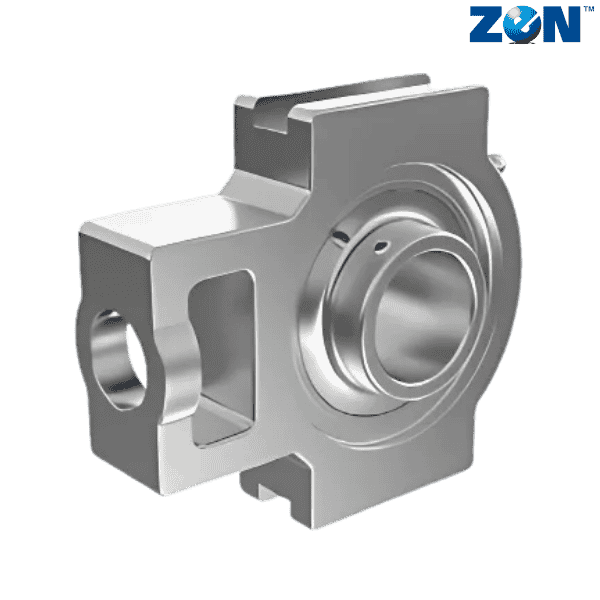

Item Number - ST207 ZEN
Category - Stainless Steel Pillow Blocks (ST)

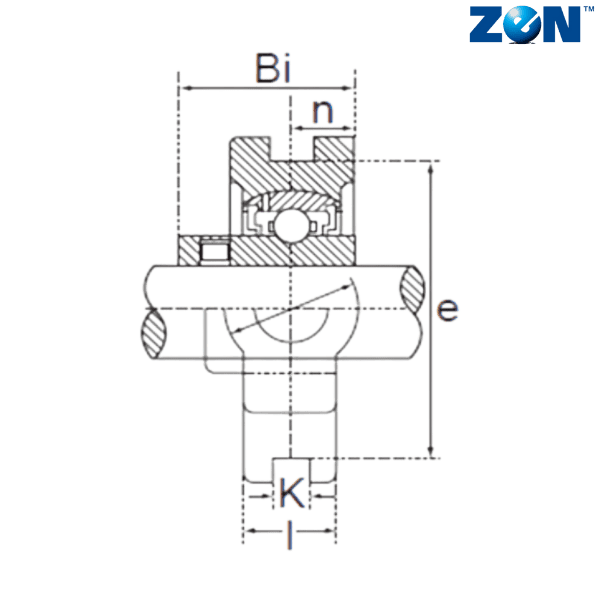

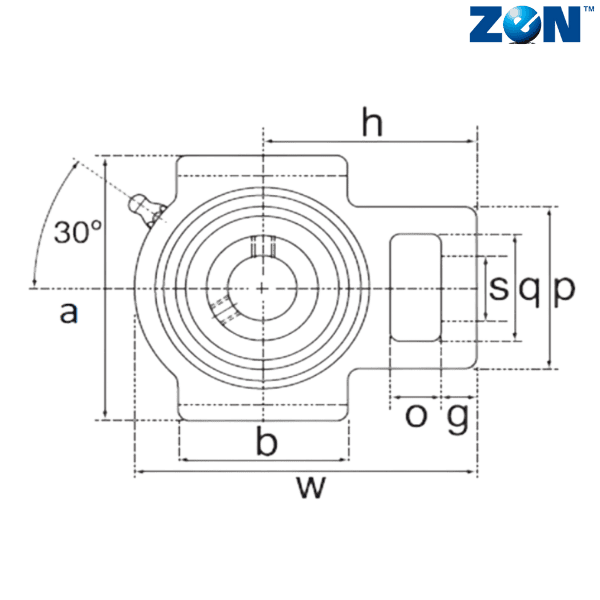

Inner Diameter (d) mm - 35
o (mm) - 16
g (mm) - 13
p (mm) - 64
q (mm) - 37
s (mm) - 22
b (mm) - 64
k (mm) - 12
e (mm) - 89
a (mm) - 102
w (mm) - 129
j (mm) - 37
l (mm) - 30
h (mm) - 78
Bi (mm) - 42.9
n (mm) - 17.5
Weight (kg) - 1.35
Bearing - SUC207
** Images are for representation purposes only
