Description
Brand - ZEN
Item Number - ST206 ZEN
Category - Stainless Steel Pillow Blocks (ST)

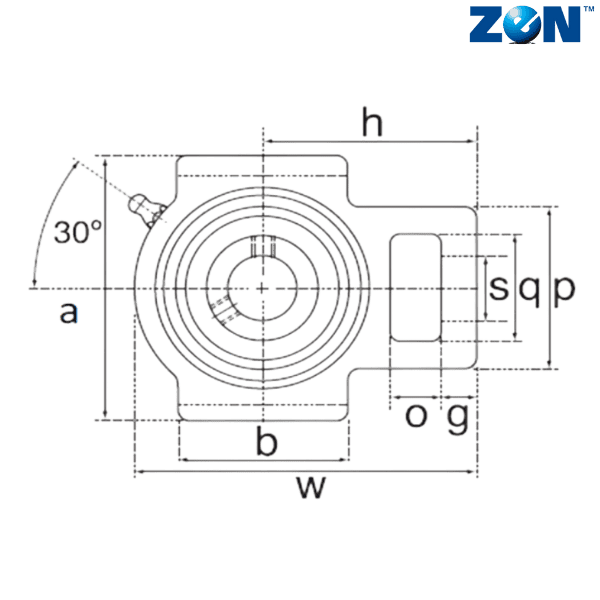

Inner Diameter (d) mm - 30
o (mm) - 16
g (mm) - 10
p (mm) - 56
q (mm) - 37
s (mm) - 22
b (mm) - 57
k (mm) - 12
e (mm) - 89
a (mm) - 102
w (mm) - 113
j (mm) - 37
l (mm) - 28
h (mm) - 70
Bi (mm) - 38.1
n (mm) - 15.9
Weight (kg) - 1.15
Bearing - SUC206

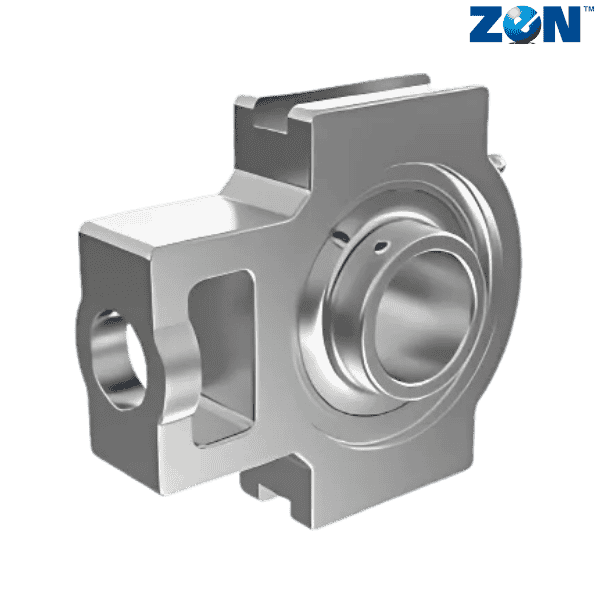

** Images are for representation purposes only
