Description
Brand - ZEN
Item Number - ST203 ZEN
Category - Stainless Steel Pillow Blocks (ST)
Inner Diameter (d) mm - 17

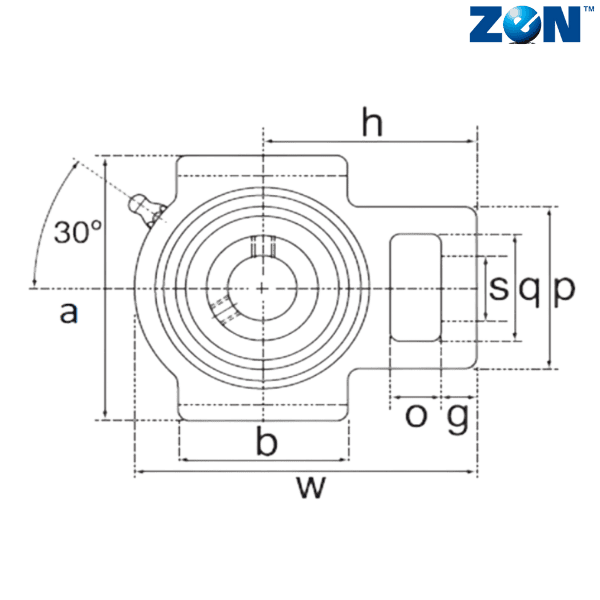

o (mm) - 16
g (mm) - 10
p (mm) - 56
q (mm) - 37
s (mm) - 22
b (mm) - 57
k (mm) - 12
e (mm) - 89
a (mm) - 102
w (mm) - 113
j (mm) - 37
l (mm) - 28
h (mm) - 70

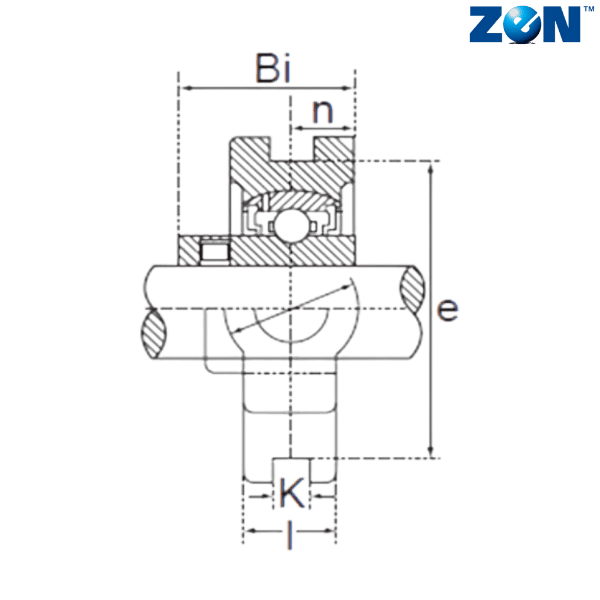

Bi (mm) - 38.1
n (mm) - 15.9
Weight (kg) - 0.73
Bearing - SUC203

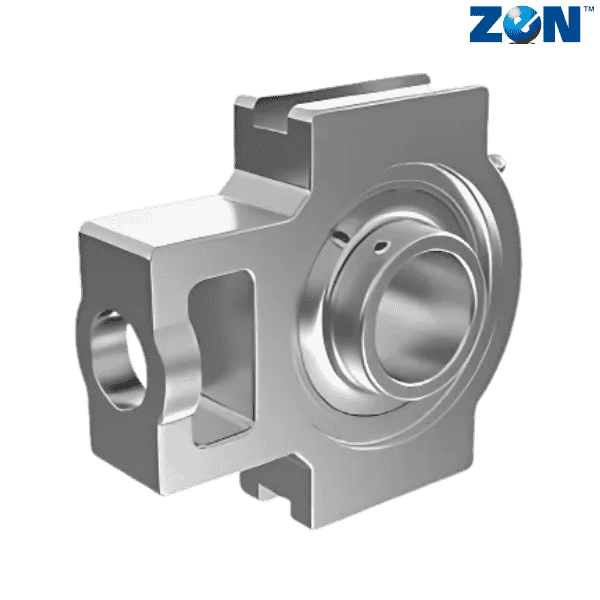

** Images are for representation purposes only
